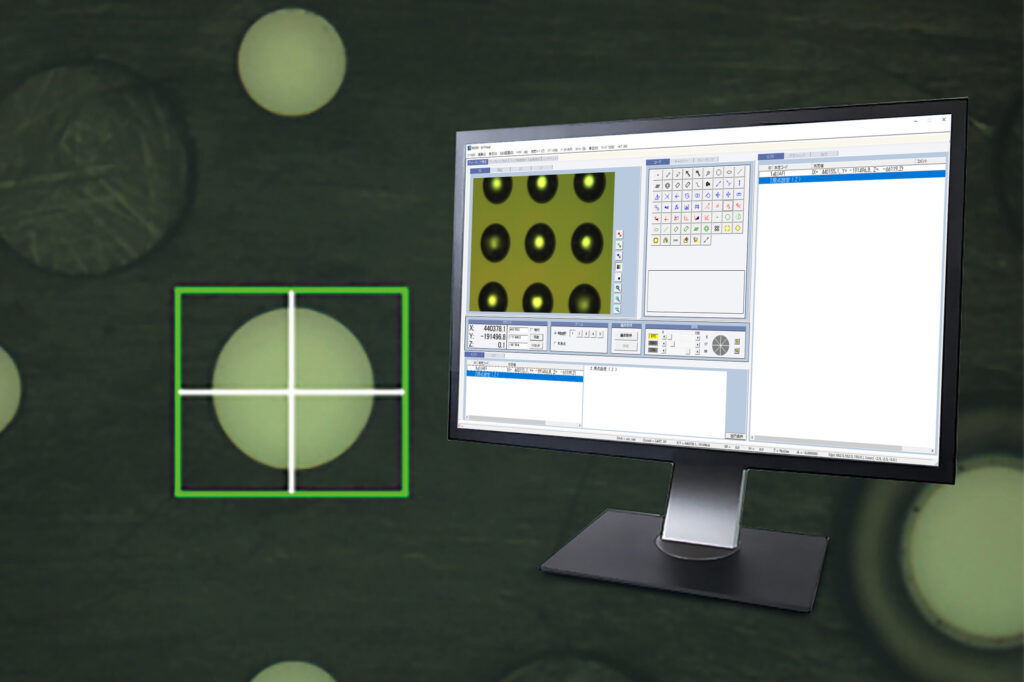

AutoMeasure is software specifically designed for the NEXIV VMZ-S series, NEXIV VMZ-H3030, and iNEXIV VMA series.
The newest version of NEXIV software “AutoMeasure” has evolved significantly from previous versions, incorporating innovative features that make measurement easier for anyone.

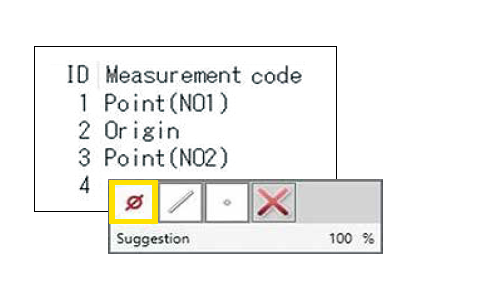

When creating a measurement program, the next command candidate is suggested on the GUI. By learning the past operator operation history, the work of creating measurement programs for customers is greatly simplified and individual operator differences are reduced.

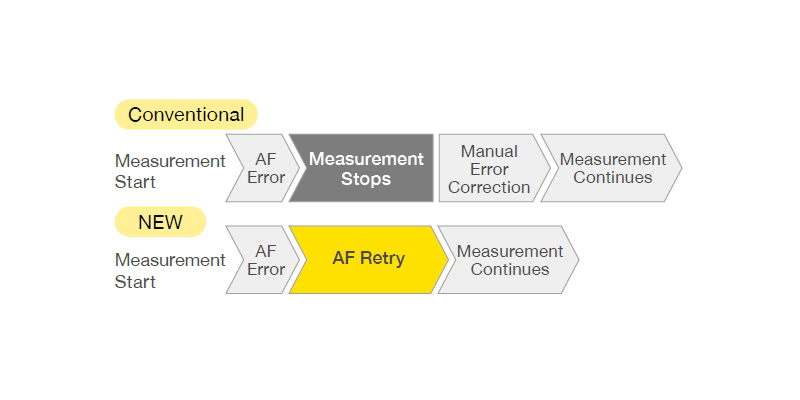

Prevents measurement interruption by automatically retrying AF until it is successful. Operators are needed only at the start of measurement, greatly reducing on-site workload.

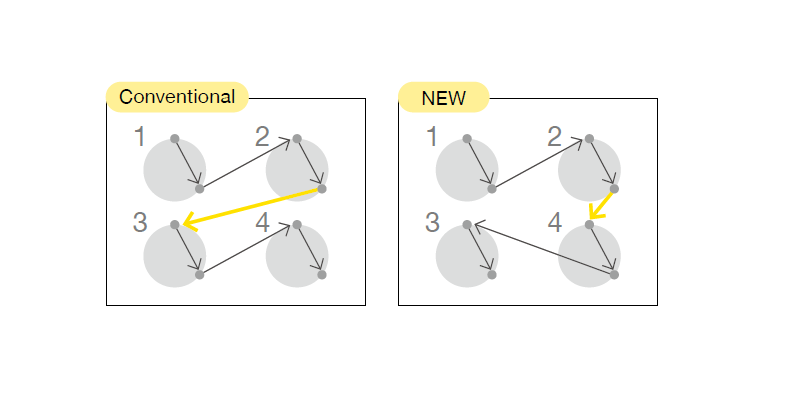

When using a CAD reference macro, the optimal measurement order for measurement points is automatically detected and reflected in the measurement program. This function enables the fastest measurement possible, tailored to individual workflows.
Edge detection conditions are automatically set by simply selecting the target edge from an image or profile. This leads in reducing set-up tmes and improving efficiency.

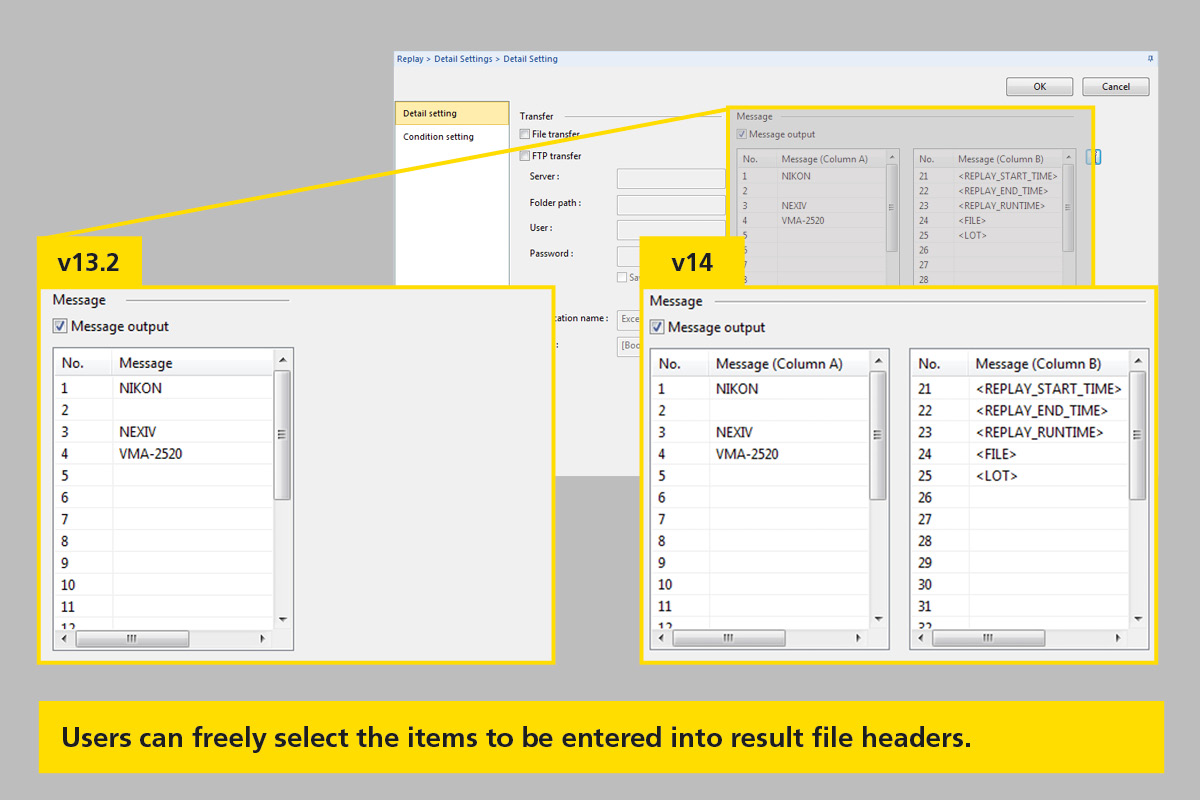

Provides users with enhanced control over data presentation and report customisation. The software allows users to customise headers in result files and reports, and increases the number of lines from 20 to 40. This level of control enables the generation of more personalised reports about replay start/end times, measurement program names, lot numbers, and other relevant information.

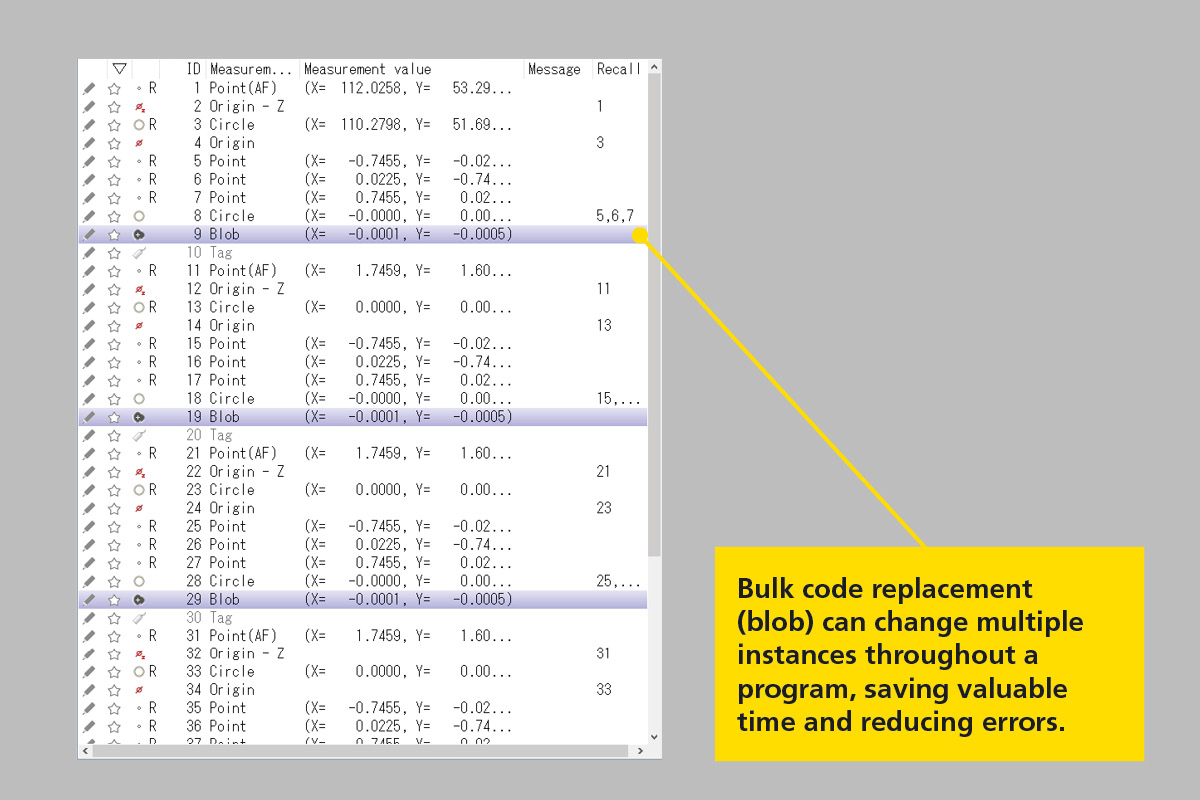

Delivers an automated solution for efficient measurement program optimisation and batch editing workflows. The bulk replace capability, similar to the “find and replace” function in many software applications, allows users to change multiple instances, saving time and reducing the risk of human errors.
NEXIV AutoMeasure is compatible with Windows 11.
NEXIV AutoMeasure is compatible with the NEXIV VMZ-S series, VMZ-H3030, iNEXIV VMA series, and NEXIV VMZ-R series.
Yes, previously created measurement programs can also be used with the latest version of AutoMeasure.
