Applications include determining the precision and accuracy of rotary tables and dividing heads; checking deflection in components with small movements, including those made from very stiff materials; and use as a trusted comparator tool against a reference flat surface or a tilted angle block.

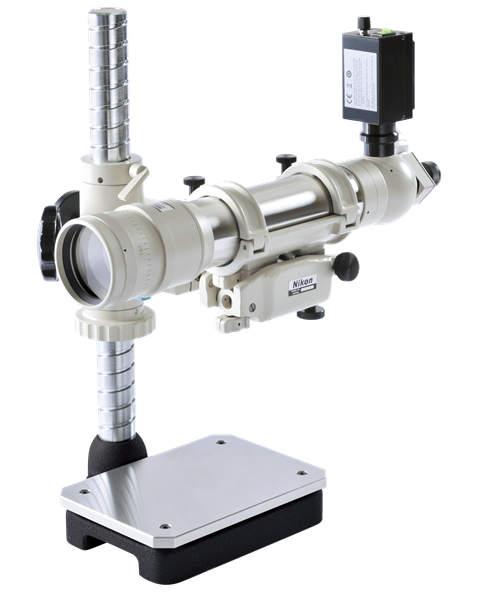

6B-LED and 6D-LED autocollimators provide brightfield or darkfield contrast for simultaneous measurements in two axes, enabling easy alignment and result generation.
The 6B-LED generates a brightfield image behind the reticle. The 6D-LED has a darkfield image for stronger contrast at the reticle, so sample glare is reduced.
Using the large adjustment ring, the system operator can correct image curvature back to normal and so can report the curvature radius of the sample.
| Telescope Magnification | 38x |
| Objective | F=700 mm; effective aperture: 70mm |
| Measuring Range | 30 minutes of arc (both vertical and horizontal axes) |
| Minimum Reading | 0.5 seconds of arc |
| Readout System | Adjustment in viewfield and reading on micrometer |
| Measuring Accuracy | 0.5 seconds of arc within a range of 5 minutes of arc 1 second of arc within a range of 30 minutes of arc |
| Viewfield | 6B-LED: bright-field, 6D-LED: dark-field |
| Light Source | LED |
| Power Supply | 12V 5A (AC adapter is required) or size AA battery x2 |
| Dimensions of Main Body | Outer diameter of lens barrel support: 68 mm Overall length: Approx. 490 mm |
| Weight (including Stand) | Approx. 32 kg |
If you would like further details on this product or a more in-depth description, our expert team will provide you with additional information and, if required, arrange an on-site visit. Talk to us in detail about your project and our experts will advise you on the best inspection system to meet your requirements. Please fill out the form opposite and we will get in touch with you shortly.
