Digital Length Measuring System, DIGIMICRO Series

Using a built-in, photoelectric, digital linear scale measuring system, contact-based thickness, depth and height measurement is possible using Nikon's DIGIMICRO Series. Three models offer various levels of measurement accuracy over three different lengths.

Extreme Precision, Guaranteed Accuracy. Display values from 1µm to 0.01µm.

Three digital heads – MF-1001:100mm travel, MK-501:50mm travel and MH-12M:15mm travel, with two counters – MFC-200: 0.1µm minimum readable value and accuracy of 3µm and TC-200: 0.01µm minimum readable value and accuracy of 1µm (0.7µm for the MH-15M). Accuracy figures are at 20°C.

Nikon DIGIMICRO Series

Three plunger models and readout units offer various accuracies over the three lengths. The modular accessory range supports special applications.

The MH-15M Digital Head Unit

At 20°C, the MH-15M and TC-200 counter have a 0-15mm measuring range and a 0.01µm minimum readable value at an accuracy of 0.7µm.

The MF-1001 Digital Head Unit

At 20°C, the MF-1001 and MFC-200 (TC-200) counters have a 0-100mm measuring range and a 0.1µm (0.01µm) minimum readable value at an accuracy of 3µm.

The MF-501 Digital Head Unit

At 20°C, the MF-501 and MFC-200 (TC-200) counters have a 0-50mm measuring range and a 0.1µm (0.01µm) minimum readable value at an accuracy of 1µm.

Product Highlights

Three Main Bodies, Two Counters

The three plunger head models are the 0-100mm MF-1001, 0-50mm MF-501 and 0-15mm MHF-15M, with two DRO counters, MFC-200 and TC-200.

Accessory Probe Tip Range

Six accessory probe tips are available to match customers’ special requirements. The probe shaft tip variants are: standard, pin, plastic, off-center, flat and roller.

Accessory Bench Stand Range

Five accessory stands are available: MS-12C, MS-22S, MS32G, MS-51C, and MS-41G. The correct stand to suit a user’s requirements can be specified for every component.

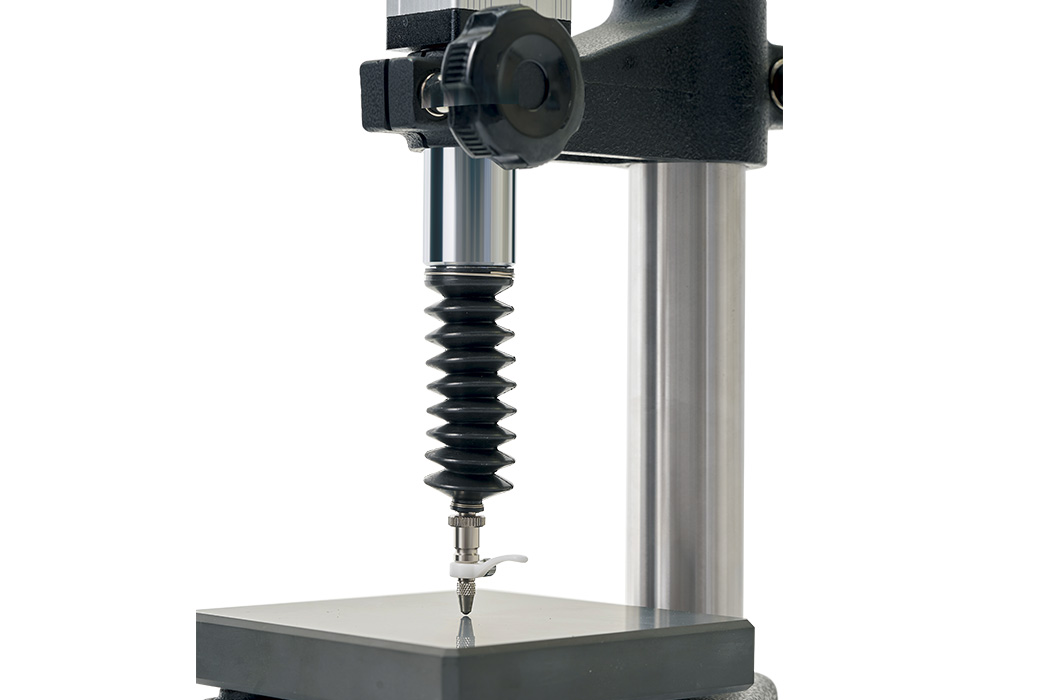

Plunger Protective Anti-Dust Bellows

The measurement head’s probe shaft is very well protected from dust or other contamination, as it is housed within a flexible protective bellows.

Core Features

DIGIMICRO

Main Unit + CounterMF-1001 + MFC-200MF-1001 + TC-200MF-501 + MFC-200MF-501 + TC-200MH-15M + TC-200
Measurement Range0-100 mm 0-50 mm 0-15 mm
Minimum Readable Value0.1 u00b5m; can be switched to 0.5 u00b5m or 1 u00b5m0.01 u00b5m; can be switched to
0.05 u00b5m, 0.1 u00b5m,
1 u00b5m, or 5 u00b5m
0.1 u00b5m; can be switched
to 0.5 u00b5m or 1 u00b5m
switched to 0.5 u00b5m or 1 u00b5m 0.0 1 u00b5m; can be switched to 0.05 u00b5m, 0.1 u00b5m, 1 u00b5m, or 5 u00b5m/th>
Accuracy (20 u00b0C)3 u00b5m1 u00b5m 0.7 u00b5m
Response Speed500 mm/sec. or less100 mm/sec. or less
Measuring ForceDownward 1.225 to 1.813 N (variable to about 0.441 N), lateral 0.637 to 1.225 NDownward 1.127 to 1.617 N (variable to about 0.294 N), lateral 0.637 to 1.225 NUpward 0.245 N, downward 0.637 N, lateral 0.441 N 'With lifting release
Operating Temperature 0 to +40 u00b0C
Weight (Main Unit)Approx. 480 gApprox. 310 gApprox. 220 g
