APDIS MV5X can be deployed across a wide range of applications within automotive manufacturing for real time feedback, deep dive inspection, and quick problem investigation to improve quality and process control throughout the factory.

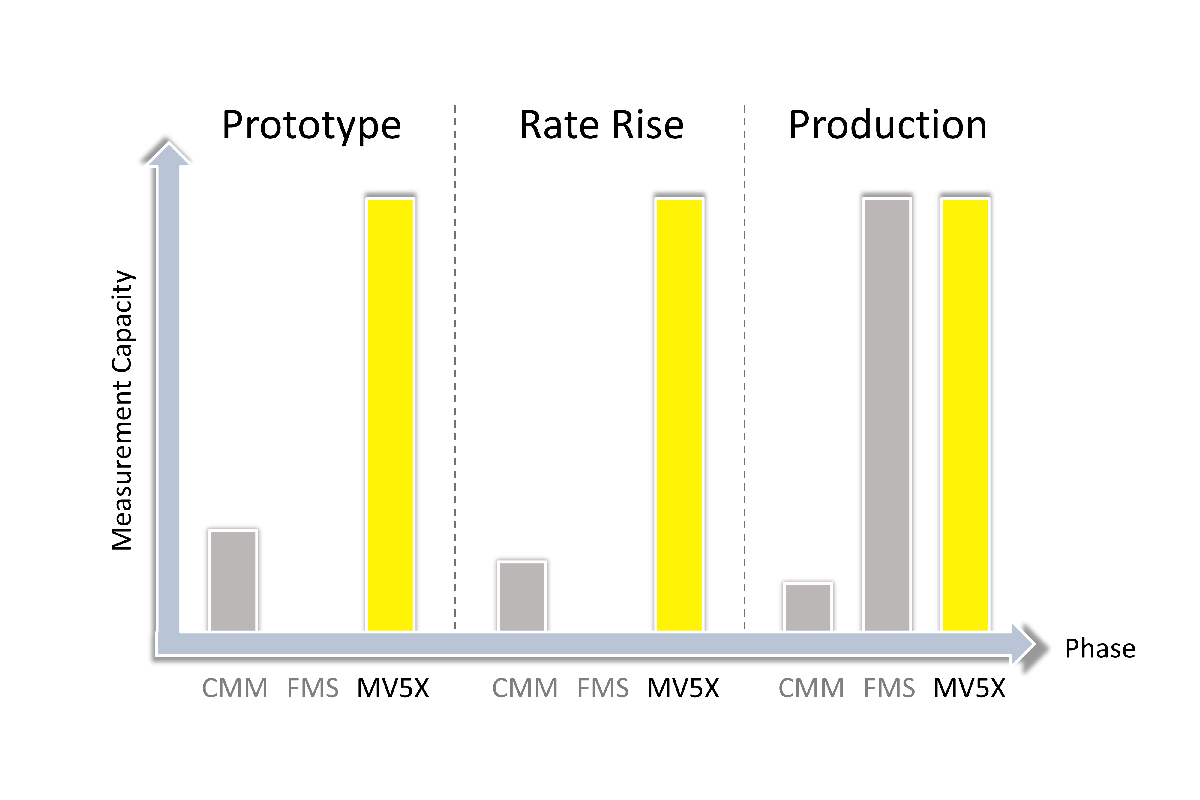

With the APDIS MV5X, traceable, accurate data is available during the critical pre-series and ramp up phases of production without the need for correlation. Complete inspection routines can be run in minutes, providing ample, good quality data to allow you to tune your production processes faster than before, reducing ramp up times and starting production with a higher quality product.

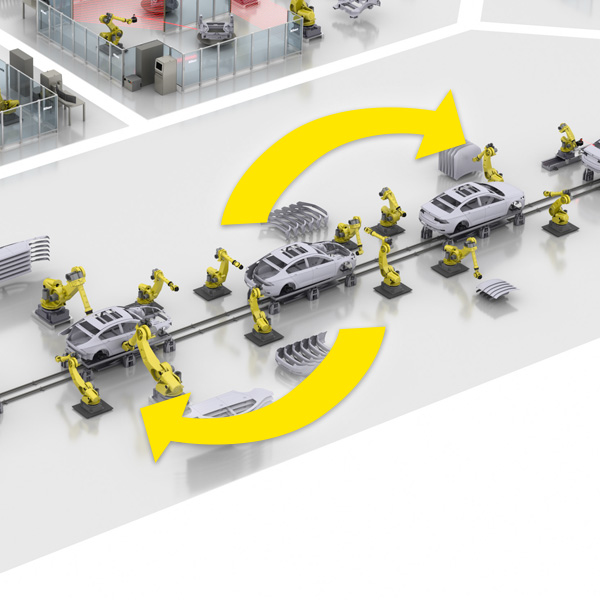

Continuous measurement during full production with the APDIS MV5X will maintain high quality allowing for feedback and feedforward of data to continually monitor and maintain the process.

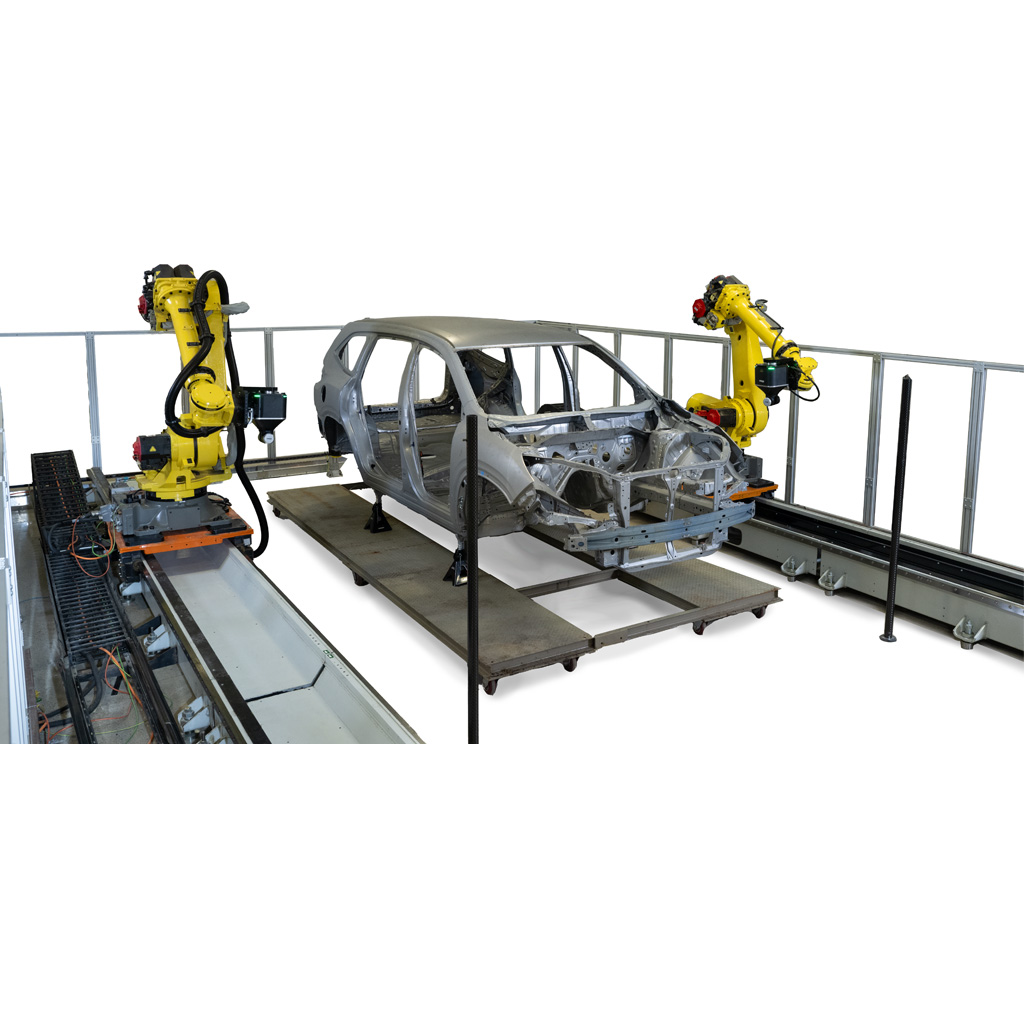

Deep dive into problems using an offline APDIS next‑generation CMM. The APDIS MV5X can check, adjust, and monitor tooling as a portable measurement device – all while maintaining the same measurement methods and equipment used in-line for consistency.
Measure features faster or scan surfaces for detailed analysis in-line and offline.

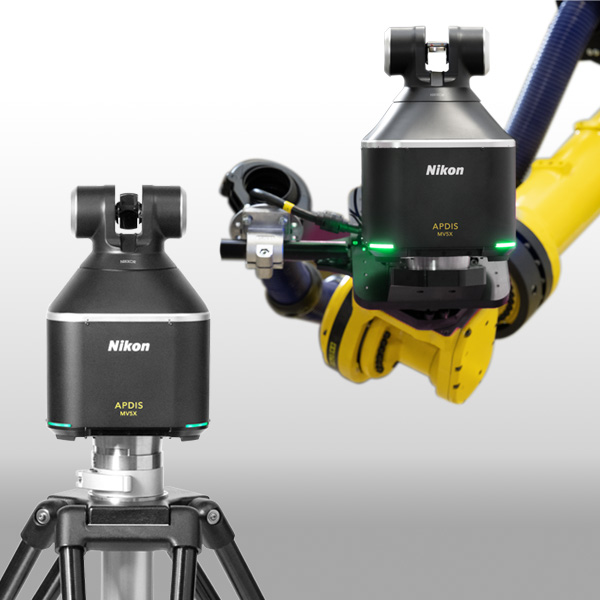

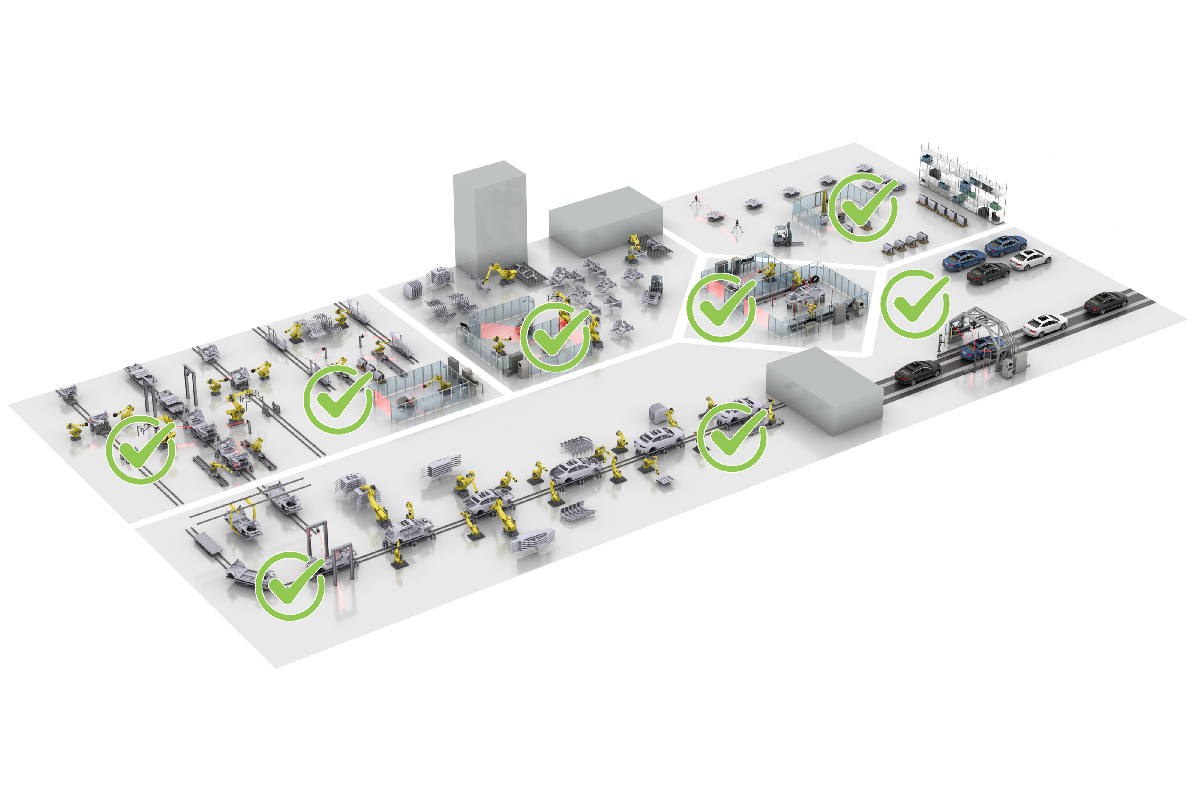

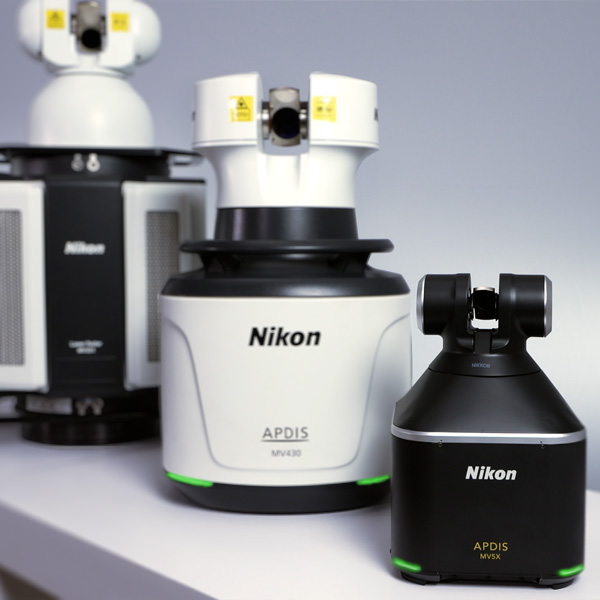

The same system can be used in different environments, from the metrology room to the production line, ensuring consistent measurements throughout your entire manufacturing process.

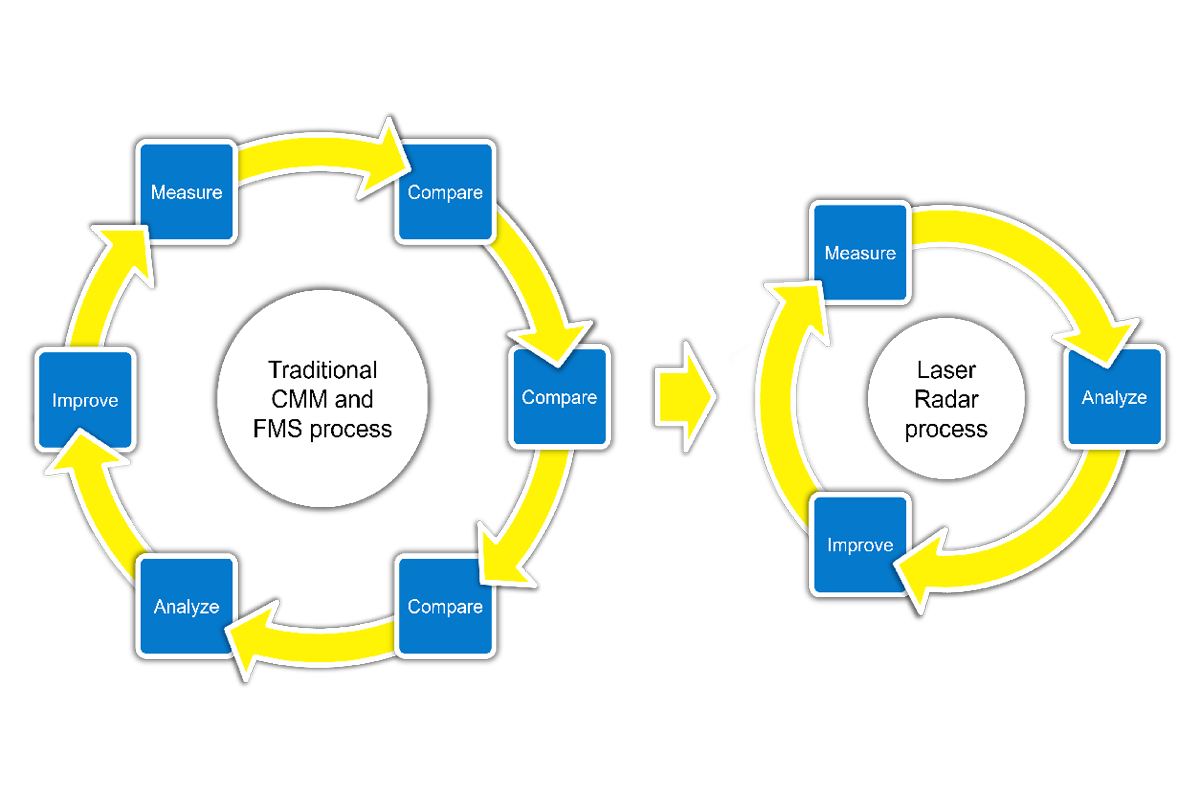

In-line, correlation free measurement identifies problems early, improves quality control and provides feedback and feedforward data to continuously control and improve the manufacturing process.
The Nikon Laser Radar is proven within automotive manufacturing to deliver reliable, accurate, non-contact measurement. Utilizing Nikon’s high-performance NIKKOR lenses and over 25 years of development and experience
| MV430E | |
| Range | 0.5m~30 m |
| Data Range | 4,000 Hz |
| Scanning Speed* | 1000pts/sec 2 sec/cm2 |
| Feature Measurement | Enhanced Feature Scan** |
| Vibration Measurement | 2000Hz Max ; 1u00b5m/m sensitivity |
| Environmental | IP54 |
*Default settings – stacking 4, points spacing 0.1mm, line spacing 1mm. **Feature measurement up to twice as fast as standard variant. Exact speed depends on settings.
| Range | Azimuth | Elevation | |
| Working Limit | 0.5m - 30m / 50m | u00b1 180u00b0 | u00b1 45u00b0 |
| Accuracy (MPE) | 20u00b5m + 5u00b5m/m | 13.6u00b5m/m | |
| 2 Point Length Measurement Accuracy* MPE(u00b5m) = u221a(2(20 + 5RAve)2 + (13.6RAve)2) | |||||||
| Average Range (m) | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 |
| MPE (u00b5m) | 33 | 40 | 57 | 115 | 216 | 420 | 625 |
| Typical (u00b5m) | 17 | 20 | 28 | 58 | 108 | 210 | 313 |
* Accuracy given as Maximum Permissible Error (MPE) in accordance with ASME B89.4.19 – 2006 verified in vertical orientation at 20°C. Typical accuracy shown is half MPE. All measurements taken in stable environment with ½” grade 25 or better tooling ball.
If you would like further details on this product or a more in-depth description, our expert team will provide you with additional information and, if required, arrange an on-site visit. Talk to us in detail about your project and our experts will advise you on the best inspection system to meet your requirements. Please fill out the form opposite and we will get in touch with you shortly.
