Inspect-X – 3D CT Reconstruction Software

Designed around the user experience, Inspect-X software provides intuitive displays, advanced scanning modes and user-friendly workflows for all X-ray and CT systems.

Product Highlights

Advanced CT Reconstruction

Nikon offers powerful and unparalleled control of CT reconstructions with automatic center-of-rotation calculation, instant reconstruction previews, intelligent artifact removal tools and region of interest selection.

Advanced CT Scanning Modes

A range of advanced acquisitions to maximize resolution and image quality, including Fast CT, Limited Angle, Offset.CT, X.Tend, Fast Panel-Scan, Half.Turn CT and more.

Intuitive Workflows

Designed around the user experience, Inspect-X streamlines workflows for efficient CT inspection with intuitive joystick control, perfect for any user environment.

Dual.Material CT

Enabling the automatic inspection of dual material samples in a production environment, Dual. Material CT delivers the market-leading reduction of artifacts caused by high-density materials.

Core Features

Production Integration with OPC UA

Nikon’s commitment to shop floor CT and integration of Nikon’s X-ray systems with MES (Manufacturing Execution Systems) is achieved through the industry-standard protocol: OPC UA.

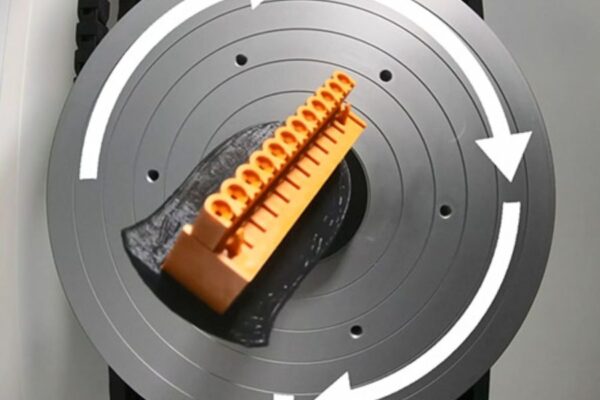

Half.Turn CT Cuts Acquisition Time

Thanks to in-house developed optimized reconstruction algorithms, artifact-free data without loss of quality or accuracy are generated from about half of the data usually acquired with conventional CT, cutting acquisition times significantly.

X.Tend Helical CT for Artefact-Free, High-Resolution Scans

X.Tend helical CT allows to scan tall objects in one continuous scan eliminating the need to take multiple scans and the resulting stitching and cone beam artifacts. Additionally, resolution can be increased by bringing the sample closer to the source.

Offset.CT for wider and higher-resolution scans

With Offset.CT not only larger components, even those wider than the detector itself, can be scanned, but it also allows the component to be placed much closer to the X-ray source, resulting in higher resolution scans.

Local.Calibration for High-Accuracy CT Measurements

Local.Calibration allows fast, automated calibration of voxel size at any CT scan position to make measurements with a high level of confidence. The calibration procedure is deskilled and dimensional accuracy is traceable with reference to a known artifact.

4-inspect-x-3d-local-calibration-high-accuracy-ct-measurements (1)

Automated Detector Evaluation

Users can evaluate and track the performance of the detector in accordance with ASTM E2737. Dedicated software performs all necessary functions, including artifact manipulation, image collection, data analysis, automated reporting, and unique trend analysis.

XT H Series

Download

XT H 225 ST 2x

Download

Configurable X-ray CT Systems

Download

MCT225

Download

XT V Series

Download

Related Products

Non-Electronics Applications for XT V Series

With sub-micron feature recognition, the XT V 160 X-ray and CT system is applicable to a wide range of industries, not only electronics but also medical, automotive, aerospace, consumer products and much more.

Discover the Product

AI Reconstruction

Nikon's AI Reconstruction revolutionizes computed tomography (CT) scanning through automated image enhancement powered by artificial intelligence (AI). Tailored to each customer's needs, it provides a new level of speed and quality to unlock superior defect detection while accelerating productivity.

Discover the Product

XT V 130 and XT V 160

Nikon’s XT V range comprises world-class X-ray and CT systems for non-destructive inspection of electronic components (PCBs, BGAs, chips and much more).

Discover the Product
