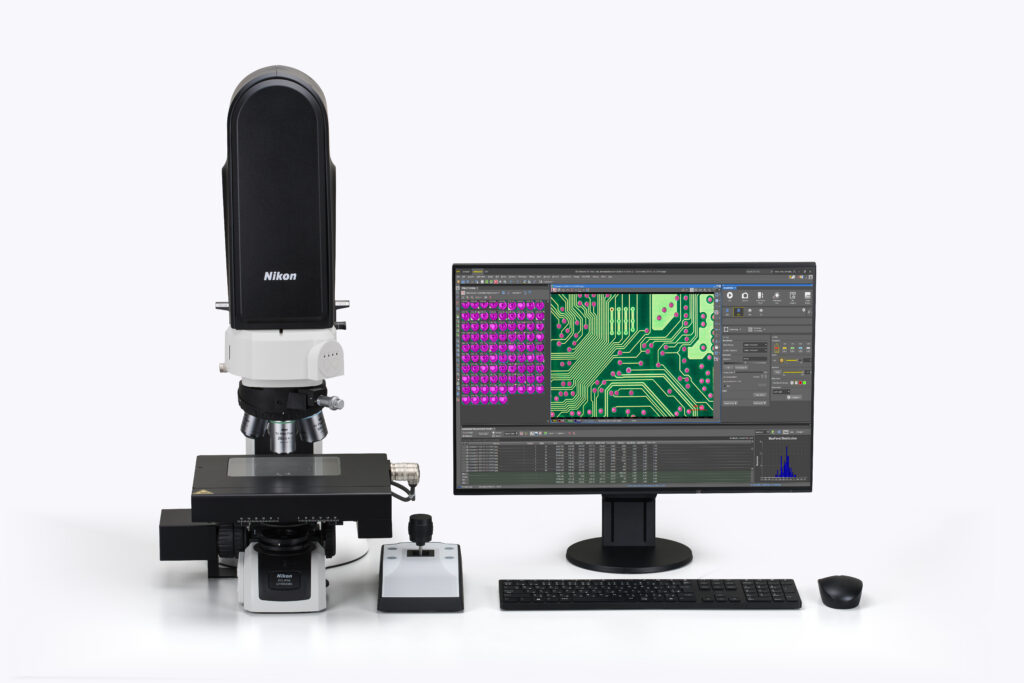

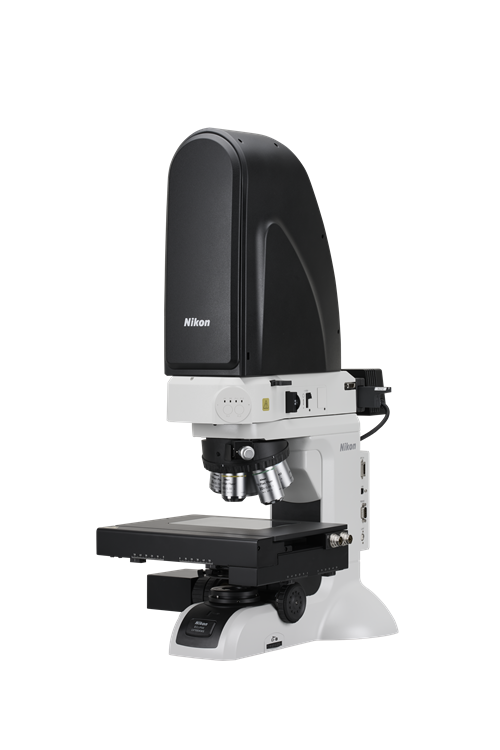

ECLIPSE LV100AMS
Nikon's ECLIPSE LV100AMS is a fully automated, AI-powered industrial microscope designed to deliver consistent inspection results with a single click. Ideal for quality control applications requiring high throughput and minimal operator variation.
One-Click Inspection
Run everything from complex inspection routines to advanced image analysis with a single click.
Automated Custom Workflows
Design inspection processes optimised to meet your specific needs. Workflow customisation is possible to best suit particular inspection conditions and processes.
Integration for seamless analysis
The AMS integrates motorised control, automated image capture, and intelligent analysis into one seamless system — delivering consistent results with minimal operator influence.
Main Applications

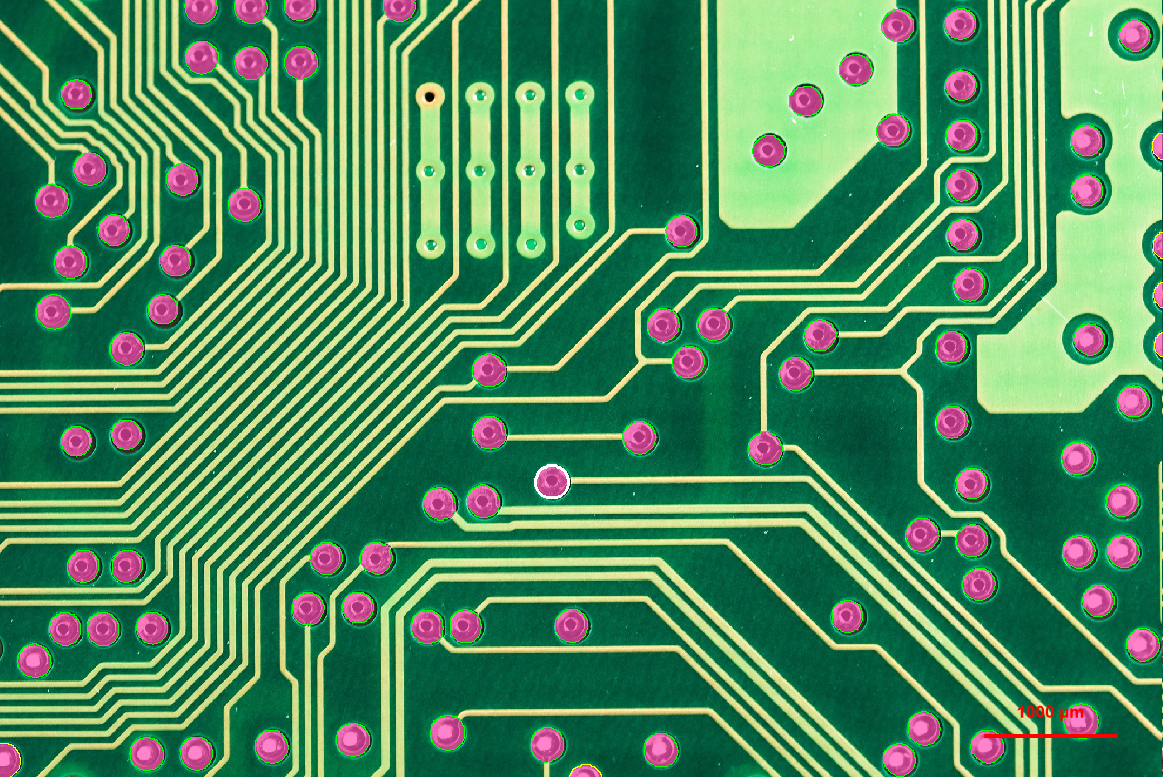

Automated Inspection
A flexible framework for building customer-specific inspection solutions. It integrates automated image acquisition, image analysis, and report generation into a single configurable workflow — ideal for applications without predefined standards, from exploratory evaluations to stable production processes.

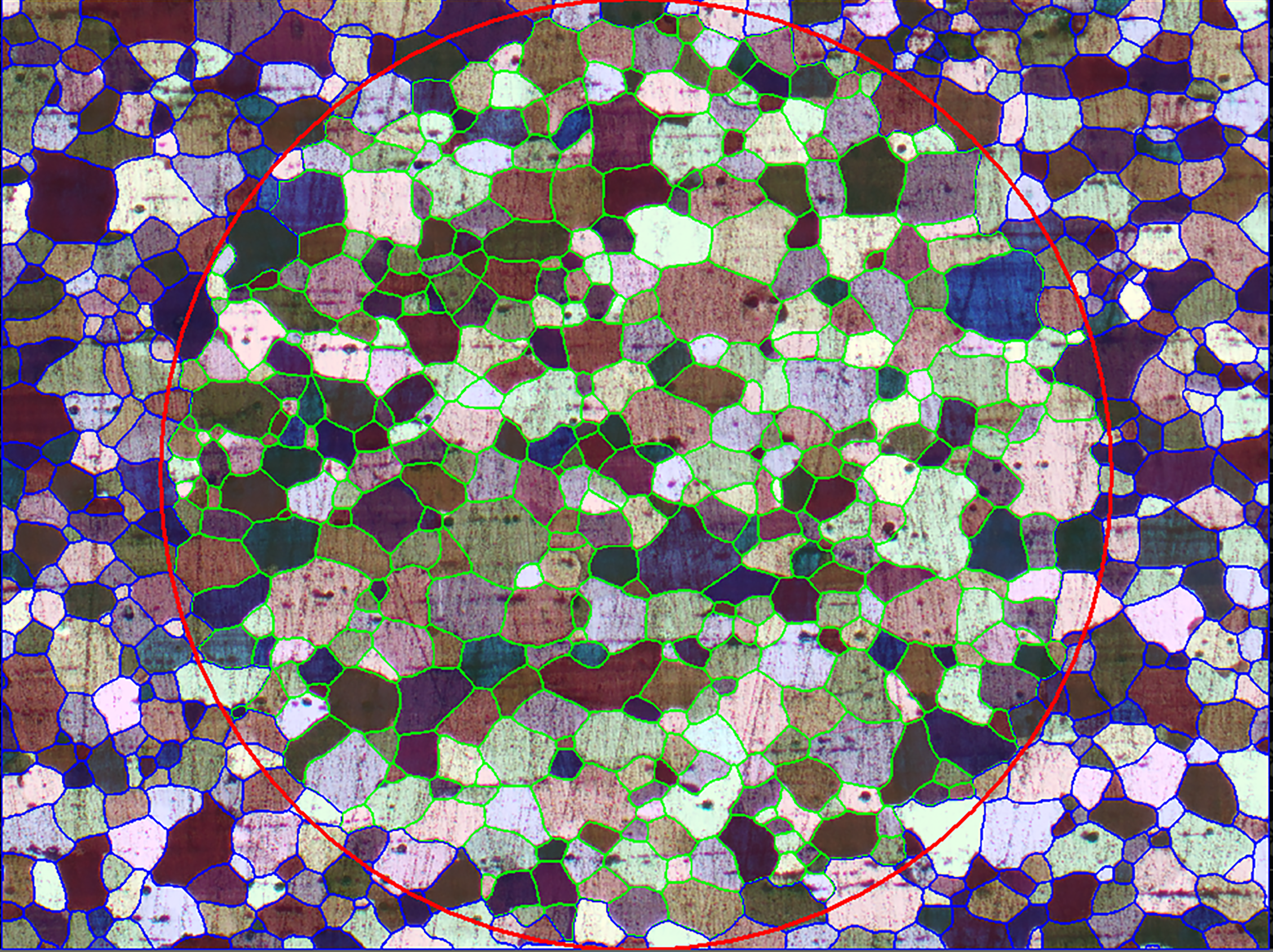

Grain Size Analysis
AI-powered Grain Size Analysis automates the evaluation of metallic microstructures, delivering fast, consistent, and operator-independent results.
Compliant with ASTM E112 and ISO 643, it ensures reliable, standards-based grain size measurements for quality control and research applications.

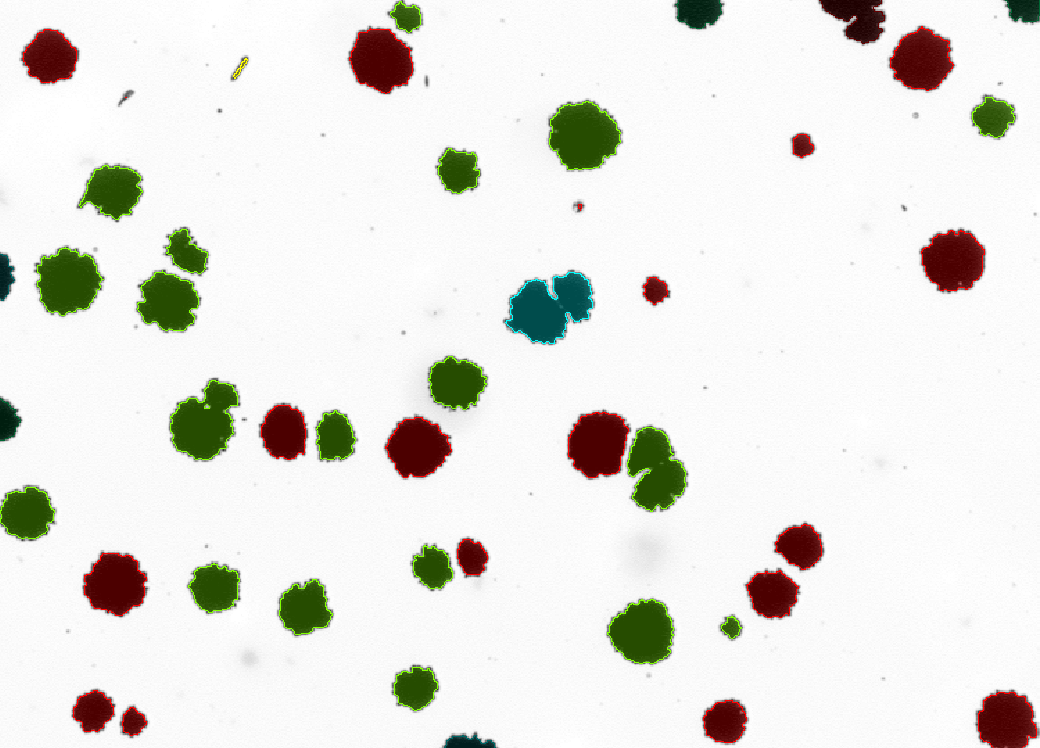

Cast Iron Analysis
Designed for quantitative assessment of graphite morphology in cast iron. Automatically detects and classifies graphite particles, determines nodularity and spheroidization rate, and supports microstructure analyses such as ferrite and pearlite content.
Supported standards: ISO 945‑4 / ASTM A247

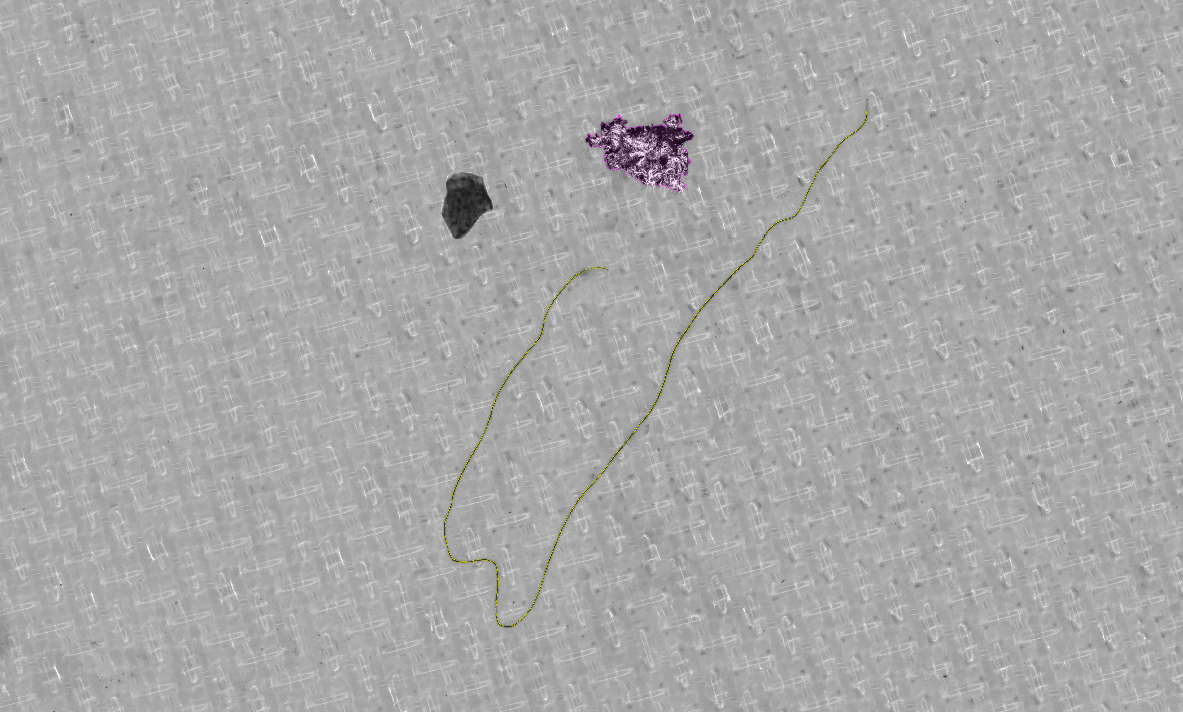

Technical Cleanliness
A dedicated module for automated inspection of particles on filter membranes, covering the complete workflow from scanning to report generation. Provides statistical results and visual documentation for cleanliness testing and quality assurance.
Supported standards: ISO 16232 / ISO 4406 / VDA 19
Product Highlights
See Every Detail with Precision

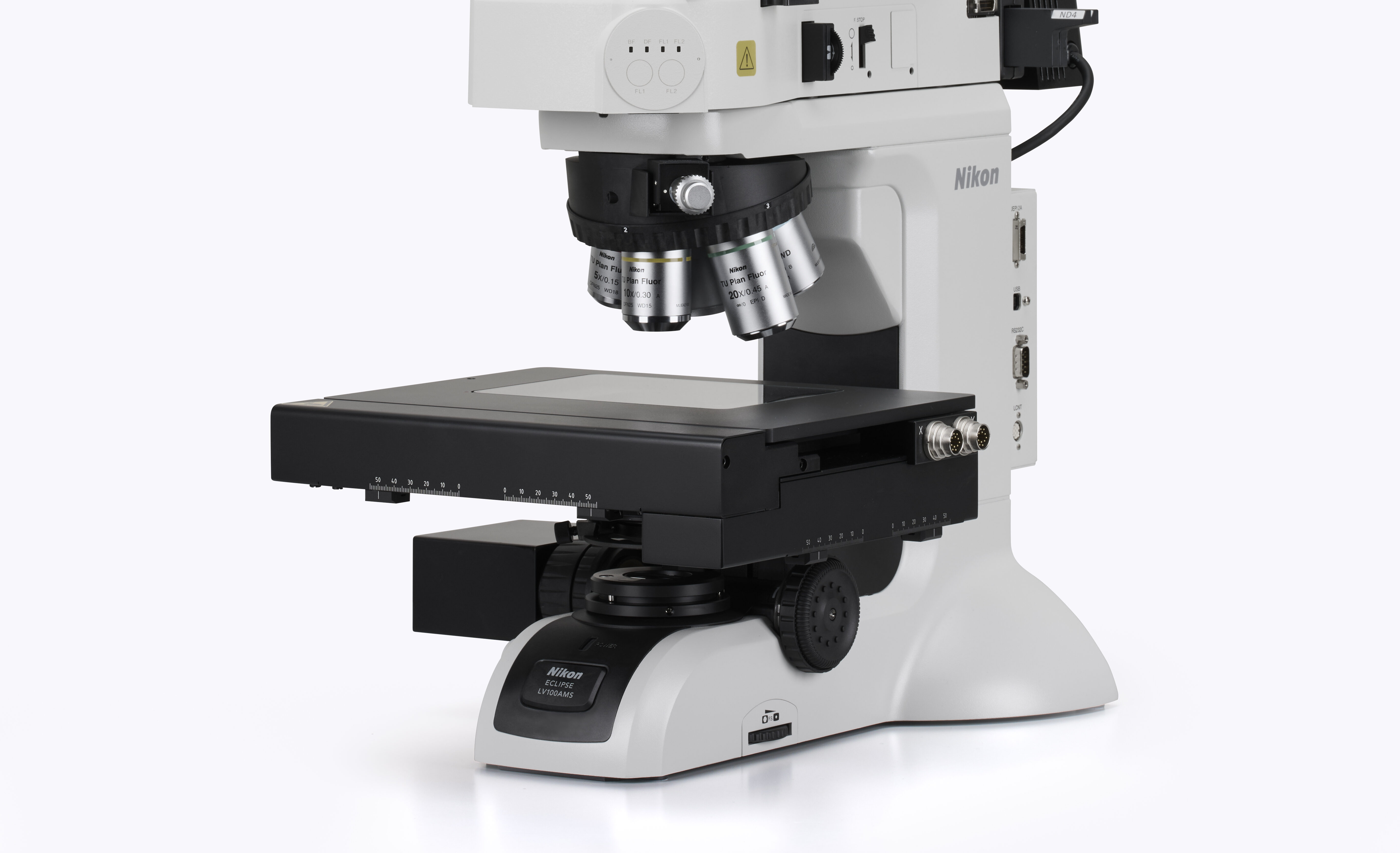

23.9 MP colour camera, a motorised XY 100 × 100 mm stage, motorised Z axis, with brightfield, darkfield, DIC, polarisation, with optional fluorescence. Digital magnification up to 6700x on a 28-inch UHD display.

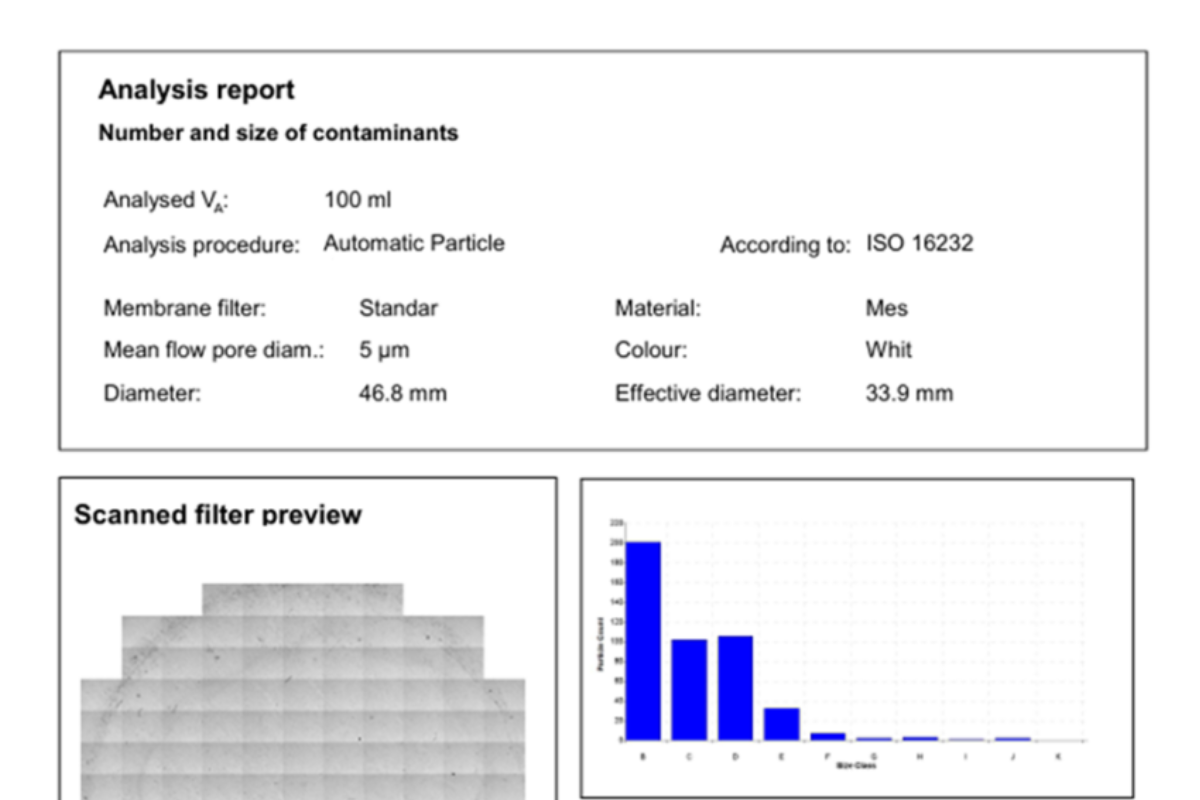

Simplify Reporting for Quality Assurance
Automatically generated reports with annotated images, measurements, and summary statistics for quality‑assurance workflows.
| Camera Resolution | 23.9MP (6000 x 3984) | ||||
| Illumination | Episcopic / Diascopic | ||||
| Observation methods | (Episcopic) brightfield, darkfield, polarization, DIC / Optional: fluorescence (Diascopic) brightfield, polarization / Optional: darkfield, DIC |
||||
| Objective lenses | TU Plan Fluor BD 5x | TU Plan Fluor BD 10x | TU Plan Fluor BD 20x | TU Plan BD ELWD 50x | TU Plan BD ELWD 100x |
| Resolution [μm] | 2.24 | 1.12 | 0.75 | 0.42 | 0.37 |
| Field of view [mm] | H: 2.880 / V: 1.912 | H: 1.440 / V: 0.956 | H: 0.720 / V: 0.478 | H: 0.288 / V: 0.191 | H:0.144 / V: 0.096 |
| Motorized Stage Range [mm] | 100 x 100 | ||||
| Dimension [mm] | Approx. 1000 x 800 x 760 | ||||
| Maximum Sample Height [mm] | 35 | ||||
| Maximum Sample Mass [mm] | 2 | ||||
