ECLIPSE MA100N

Nikon's ECLIPSE MA100N is an affordable, flexible, compact, modular, inverted microscope for episcopic optical contrast techniques in conjunction with digital imaging camera accessories. It is ideal for metallurgical material inspection in many industrial applications.
  1. Home
  2. Products
  3. Industrial Microscopy
  4. Industrial Microscopes
  5. ECLIPSE MA100N

Compact, Robust, User-Friendly, Inverted Metallurgical Microscope

Superb Nikon CFI60-2 optics provide excellent images to both eyepieces and to the optional port on Nikon’s digital imaging cameras with analysis software. The microscope design allows complementary optical contrast techniques.

Nikon ECLIPSE MA100N

The MA100N is an inverted microscope with episcopic illumination for routine inspection of industrial materials and components as well as for research and development.

Nikon CFI60-2 Optical Series

Nikon’s innovative design enables clear, high-contrast brightfield and simple polarisation (POL) optical contrast techniques.

Nikon Digital Sight Cameras

All Nikon Digital Sight cameras efficiently capture images of a sample and deliver them to the image processing software of the NIS-Elements suite.

Product Highlights

Nikon CFI60-2 Optical Series

Nikon’s CFI60-2 TU Plan EPI objective lens series provides the ultimate in long working distance capability together with an advanced chromatic aberration correction system.

LED Illumination, Compact Body

A dedicated LED illuminator is incorporated, providing long life, low power consumption and diffused illumination, avoiding unwanted shading effects.

The MA100N is of strong, compact, robust construction.

Modular Component Accessories

Selected optical components match the user’s application.

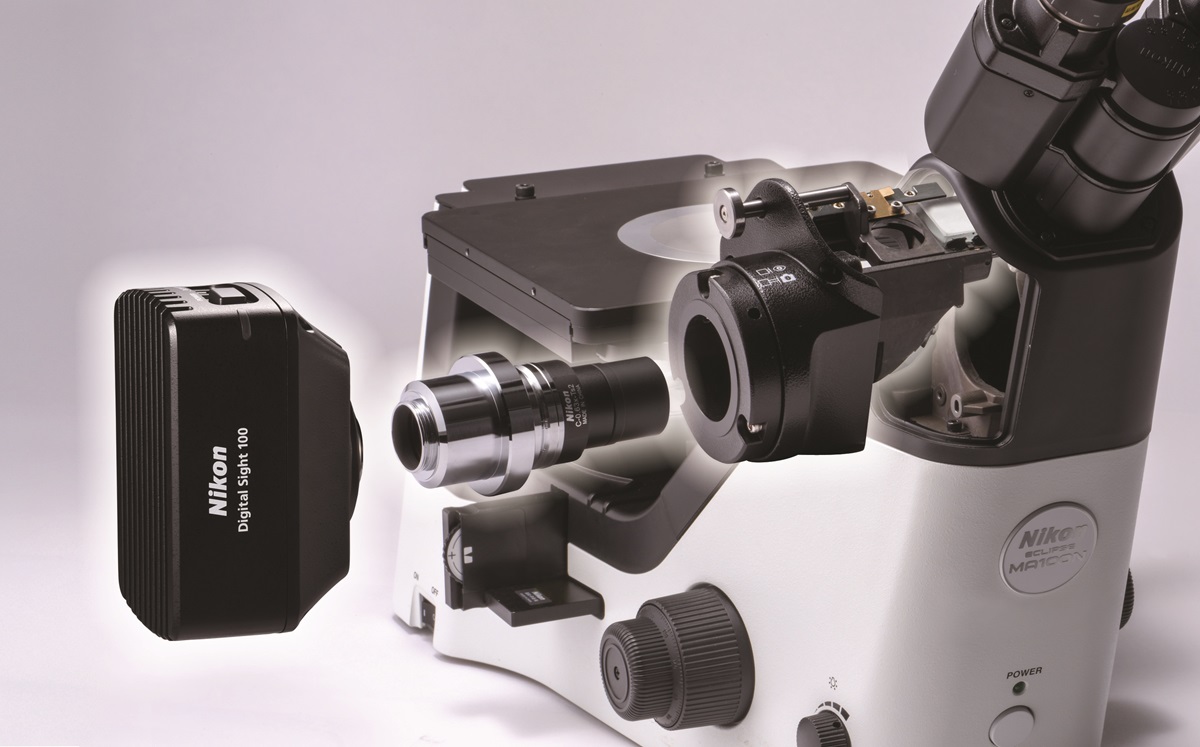

The MA100N has an optional third optical path to a photo port on a Nikon Digital Sight camera. Image analysis is performed within Nikon’s NIS-Elements software suite.

Modular Stage, Object Holders

The MA100N offers a 3-plate stage design for moving the sample without sliding.

The plain stage design has an optional mechanical stage and a range of holders.

Core Features

Metallurgical Specimens across all Industry Sectors

The MA100N is ideal for examining manufactured components and polished cross sections of metallurgical specimens across all industry sectors. Digital image capture and quantification make the instrument suitable for applications including cast iron nodularity and graphite flake analysis as well as metallic grain sizing.

Inverted Microscopes MA Series

Digital Sight Series

NIS Elements

OpticsCFI60/CFI60-2 system
Observation ImageReversed image
Observation MethodBrightfield and polarization (with MA P/A simple polarizer/analyzer set)
FocusingFocusing nosepiece (fixed stage), coaxial coarse/fine adjustment knob with 8.5-mm stroke
(Coarse adjustment of 37.7mm per turn, fine adjustment of 0.2mm per turn)
NosepieceBrightfield 5-position nosepiece
StageMA-SR-N Rectangular 3-plate Stage N: 50×50 mm stroke (includes two stage inserts (ø20mm and 40mm opening) and coaxial control handle on the right side
The 3-plate design allows entire top surface to move. Optional Stage inserts: MA-SRSH1
Specimen Holder 1 with (ø15mm opening or MA-SH3 Specimen Holder 3 with 2mm to 32mm adjustable opening
MA-SP-N Plain Stage N: 188×310mm - Includes two stage inserts (1) clear acrylic stage insert with ø30mm opening, (2) clear acrylic stage insert with crescent opening (width 30mm) to allow clearance for rotation of high magnification objectives
Optional stage inserts: MA-SRSH1 Specimen Holder 1 with 15mm opening or MA-SH3 Specimen Holder 3 with 2mm to 32mm adjustable opening
Accepts Attachable Mechanical Stage TI-SM
TS2-S-SM Mechanical Stage: 126mm×78mm stroke, handle can be attached on the right or left side of the plain stage
Optional Specimen Holders to fit Attachable Mechanical stage: MA-SH1-N Specimen Holder 1N (ø15mm opening)
MA-SH2-N Specimen Holder 2N (ø30mm opening), or C-S-HU Universal Holder (30mm to 65mm adjustable opening)
IlluminatorInternal power supply white LED light source, condenser built-in (lever operated), ø25mm filter can be inserted
Binocular BodyBuilt-in Siedentopf binocular, 45 inclination angle and 50 to 75-mm interpupillary adjustment, attachable camera port, eyepiece/Port: 100/0:0/100
Power Consumption (max.)15W
External Dimensions229×551×404 mm (W×D×H)
WeightApprox. 10kg
MA100
