With the ability to measure over six times faster than traditional CMMs, be installed on the shop floor, and enhanced by ease of programming, the APDIS IQ stations provide unparalleled productivity, flexibility and simplicity for a CMM system. Precision measurements of features can be made without adapters, probes or coatings to high accuracy and repeatability, allowing quality control feedback quickly and easily where it’s needed.
No adapters, no coatings, no reference targets.
Fast setup, fast measurements.
Only measure what you need, where you need, how you need. Real-time feedback and analysis for faster problem identification.
Metrology room or shop floor installation. Quality inspection available where it’s needed, when it’s needed. Simplified programming and minimal setup.

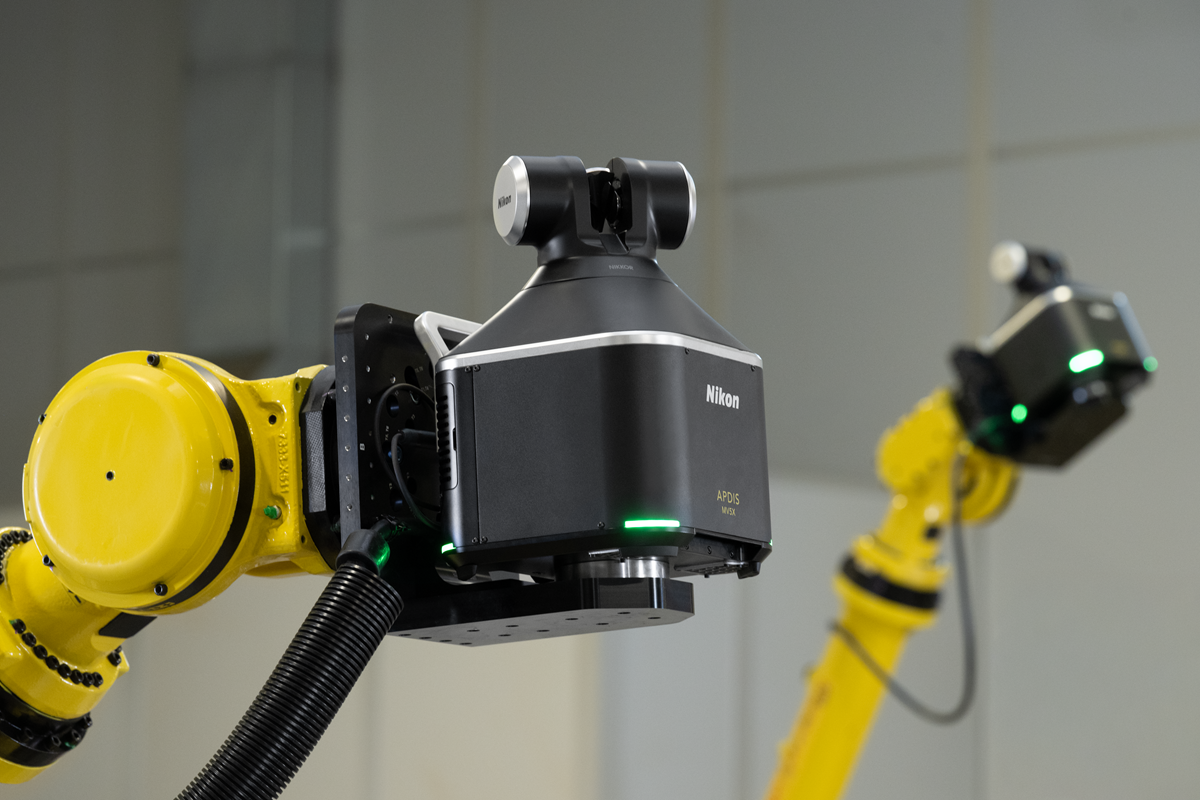

Fast, automated, precise and accurate measurements are provided by the APDIS Laser Radar technology. Utilising the latest MV5X Laser Radar, the IQ Stations fully utilize the speed and accuracy of the technology.
Alignments are made to the fixturing at each measurement position, removing robot variation from results. Simplified, pre-programmed robot positions mean modifications and additions do not need any robot programming.

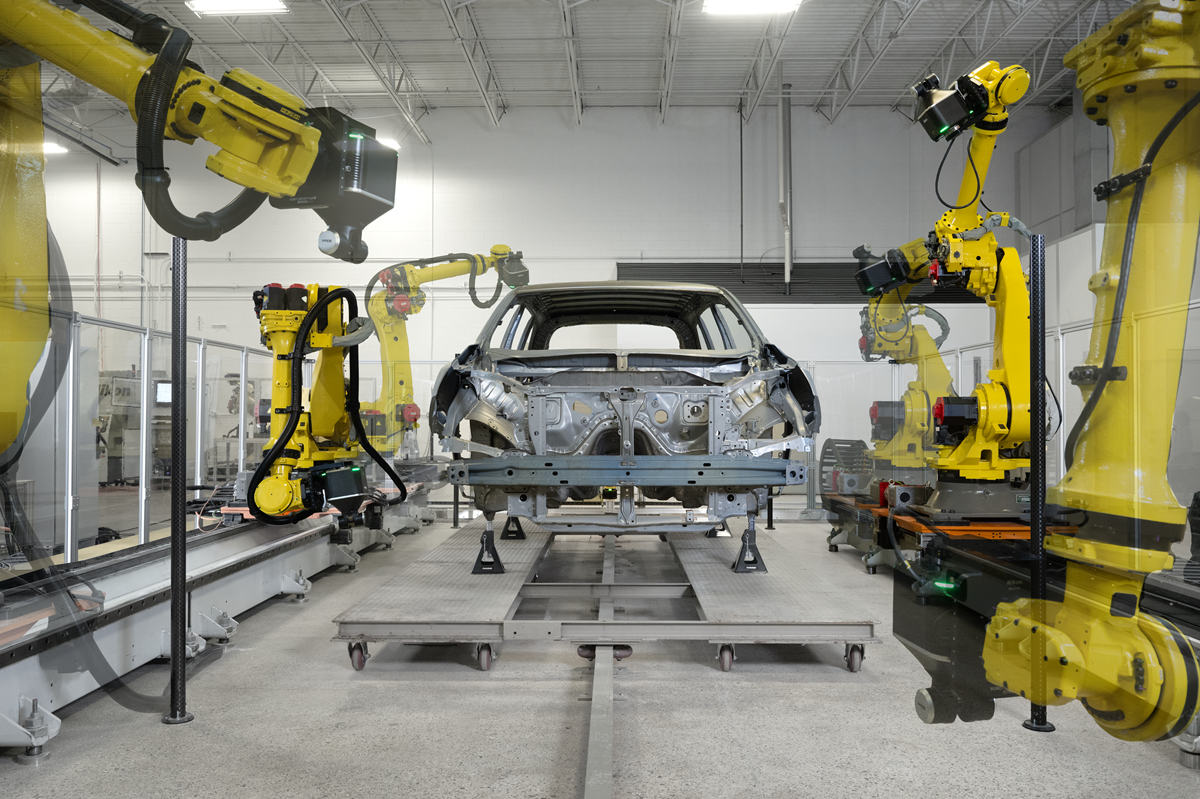

Equally at home on the shop floor as a metrology room, the APDSI IQ Stations provide installation and measurement flexibility.

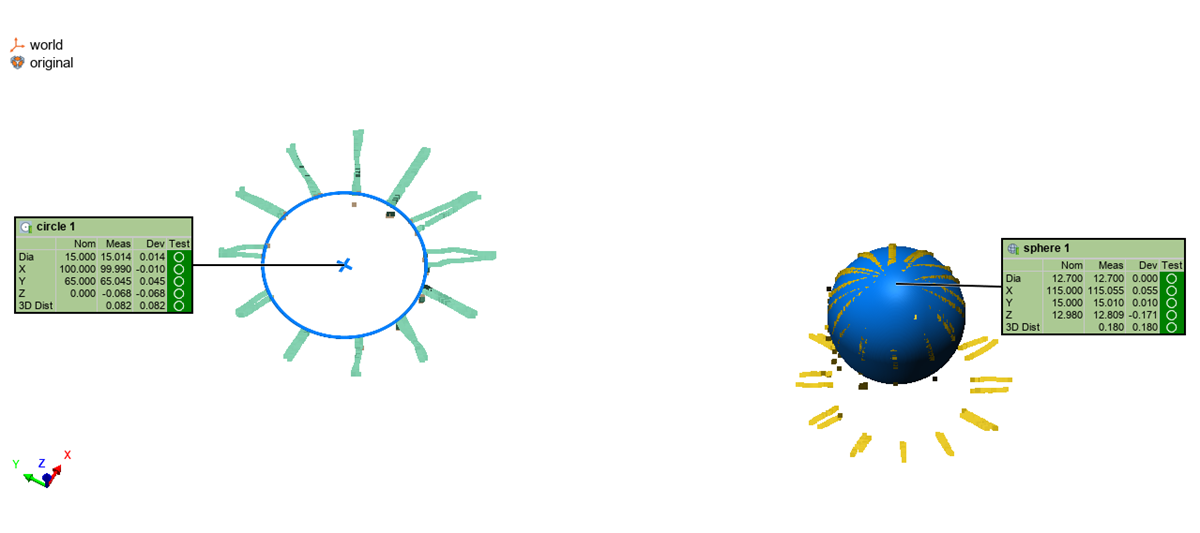

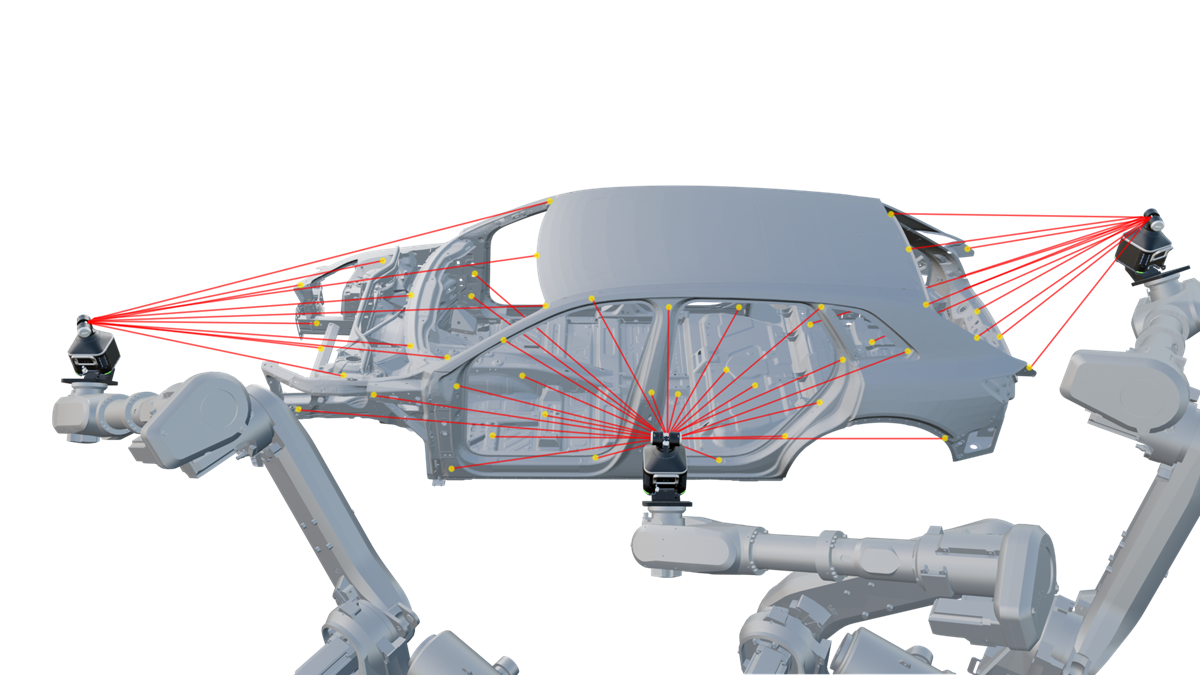

Measure 1 or 1000 features, all with minimal data sets for efficient analysis, all without the need for adapters or targets.
With the wide field of view of the MV5X Laser Radar, the APDIS IQ stations provide excellent feature coverage, even allowing measurements of features inaccessible to other technologies.
A pre-programmed grid of robot positions coupled with the large standoff of the system means the Laser Radar and robot never need to go near the parts, removing the possibilities of accidental collisions and damage. Coupled with international safety certification, the IQ stations are safe for operators wherever it is installed.

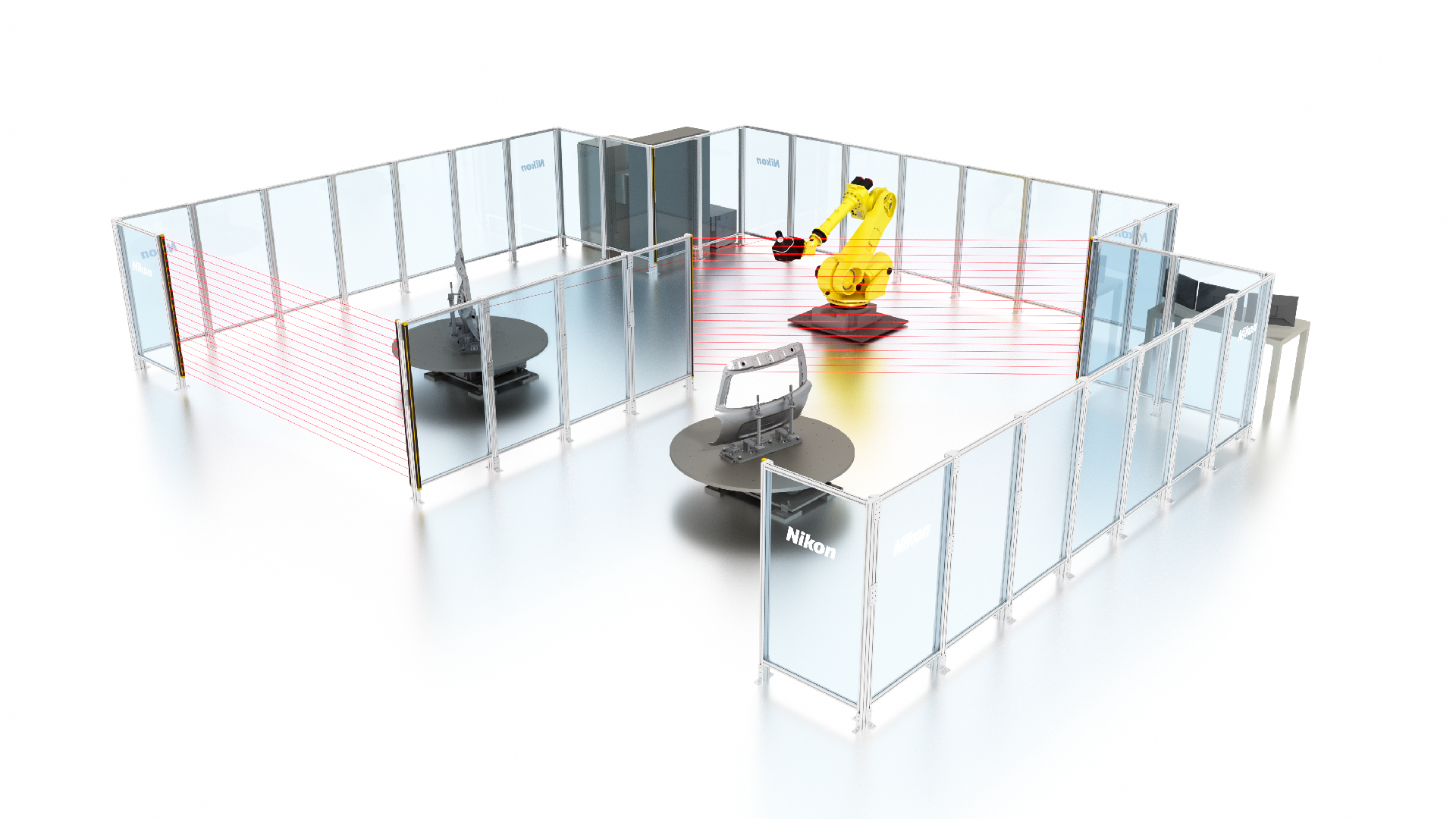

From small to large, the IQ Stations have an option to suit a wide range of components and industries. The R-Series give compact installations for smaller components such as car doors or battery trays, whilst the DR-Series are designed for a full BiW chassis or any large component across a wide range of industries. Due to the flexibility of the Laser Radar and the layout, modifications to suit your particular application can also be made, just enquire below to find out how we can help improve your metrology flow.
| Name | Configuration | |

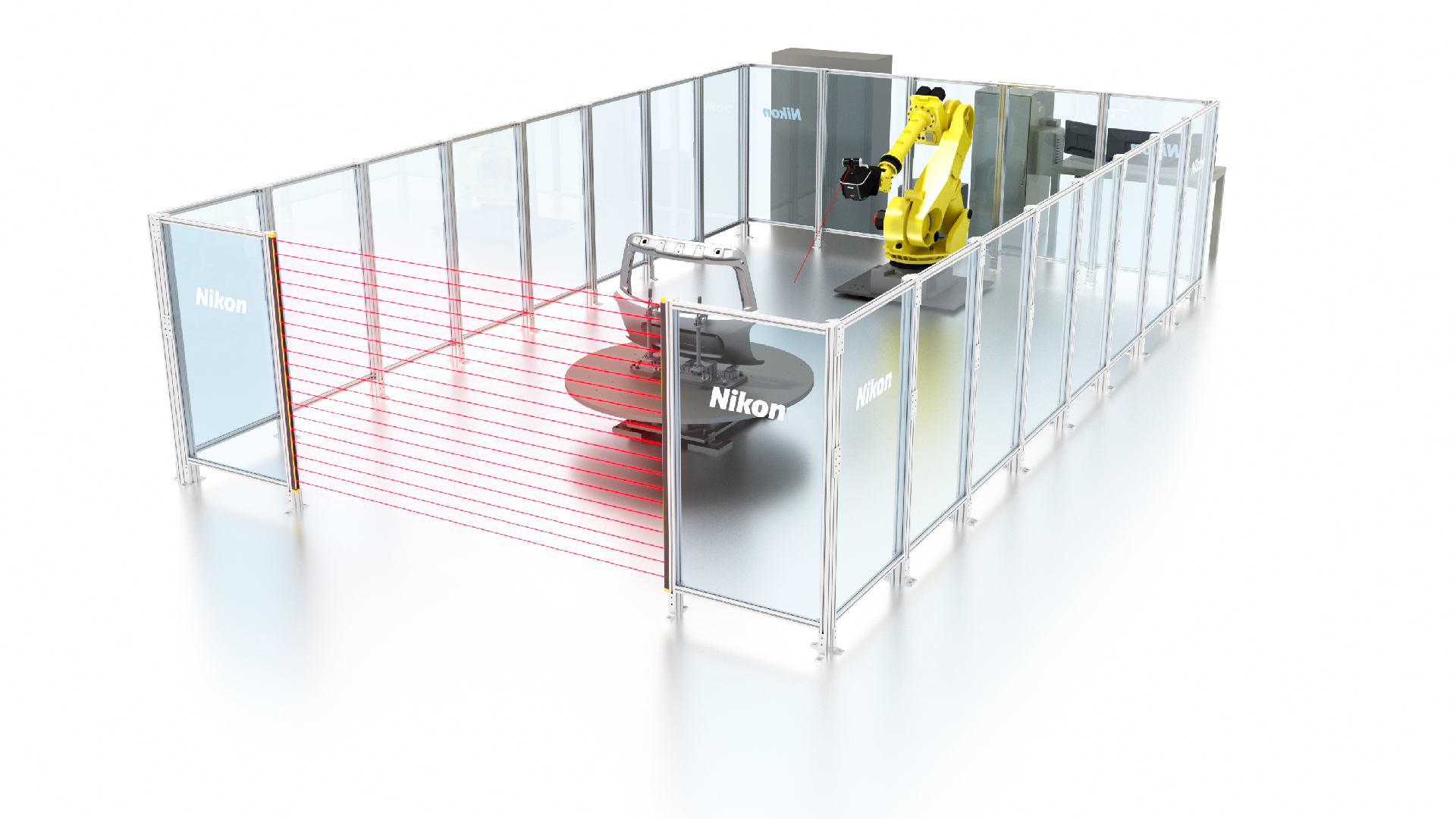

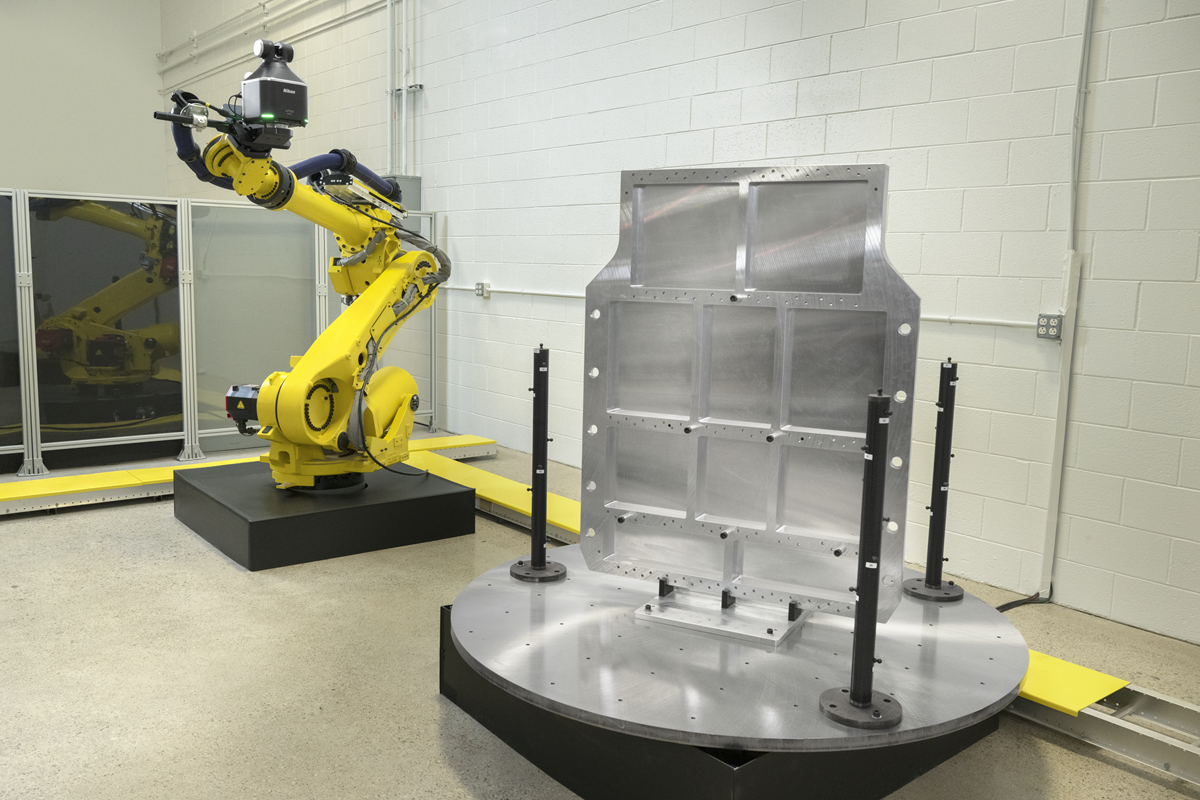

| R-Series | R180S | Robot and Turntable 1 x MV5X |
| R180D | Robot and dual Turntables 1 x MV5X |
|

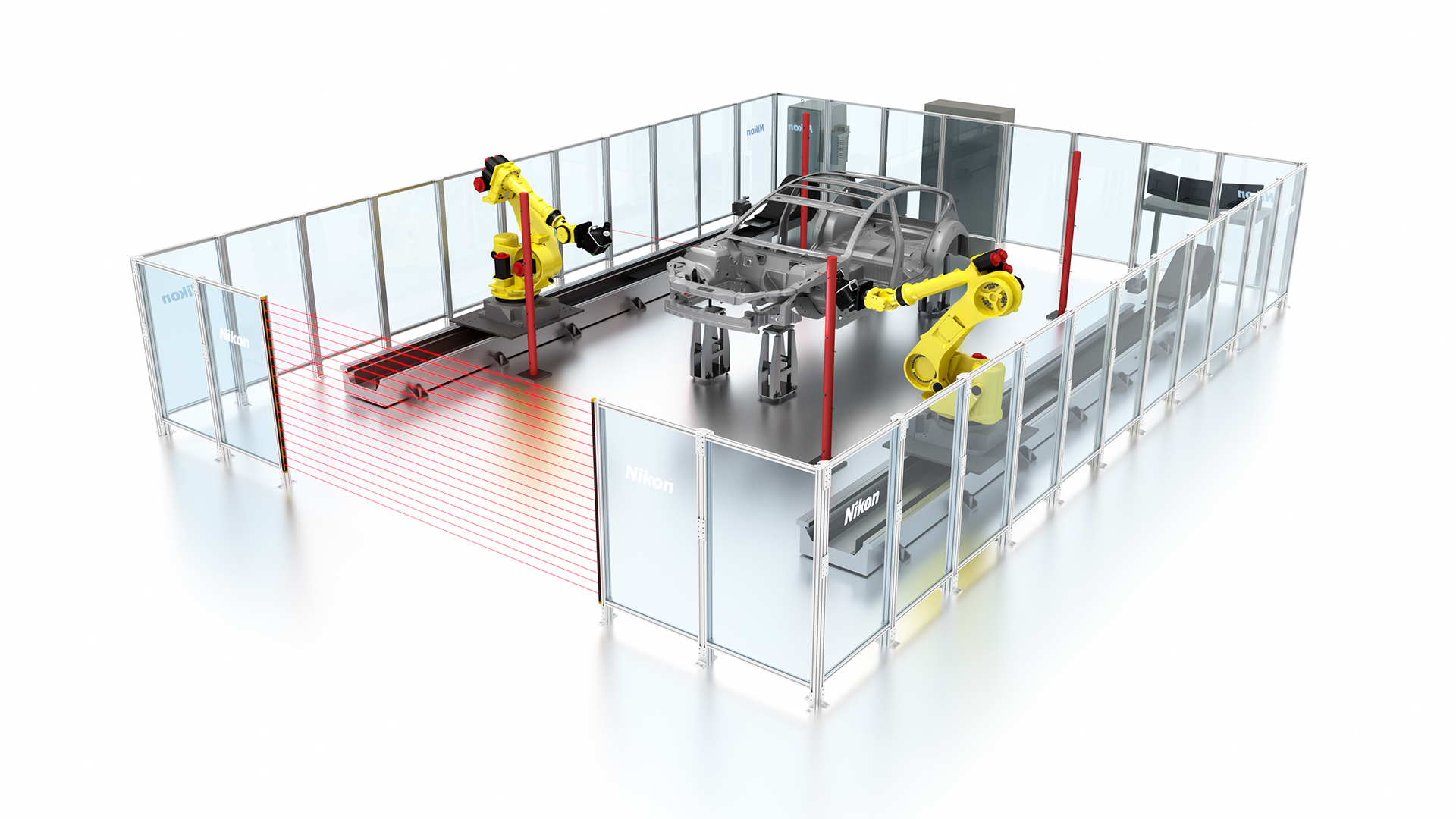

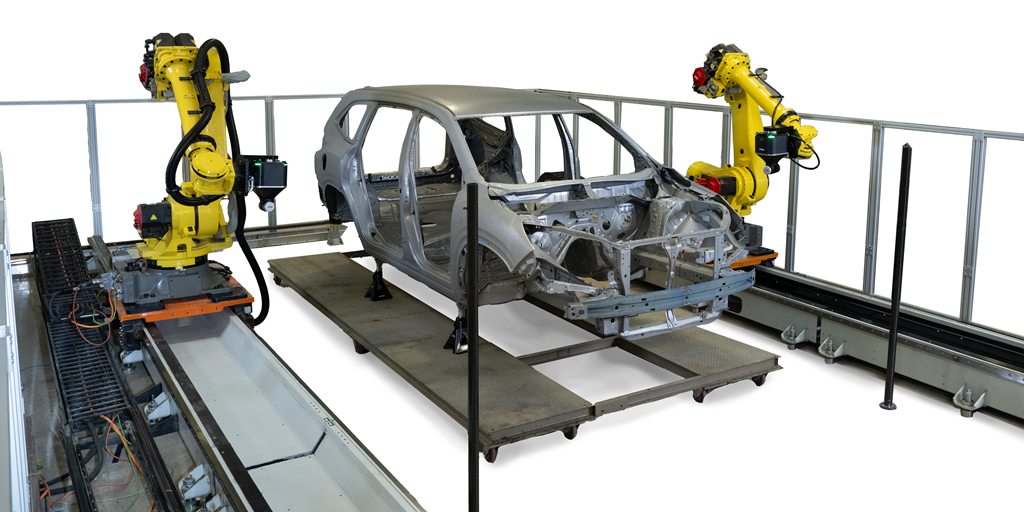

| DR-Series | DR600 | Dual robot on rails 2 x MV5X |

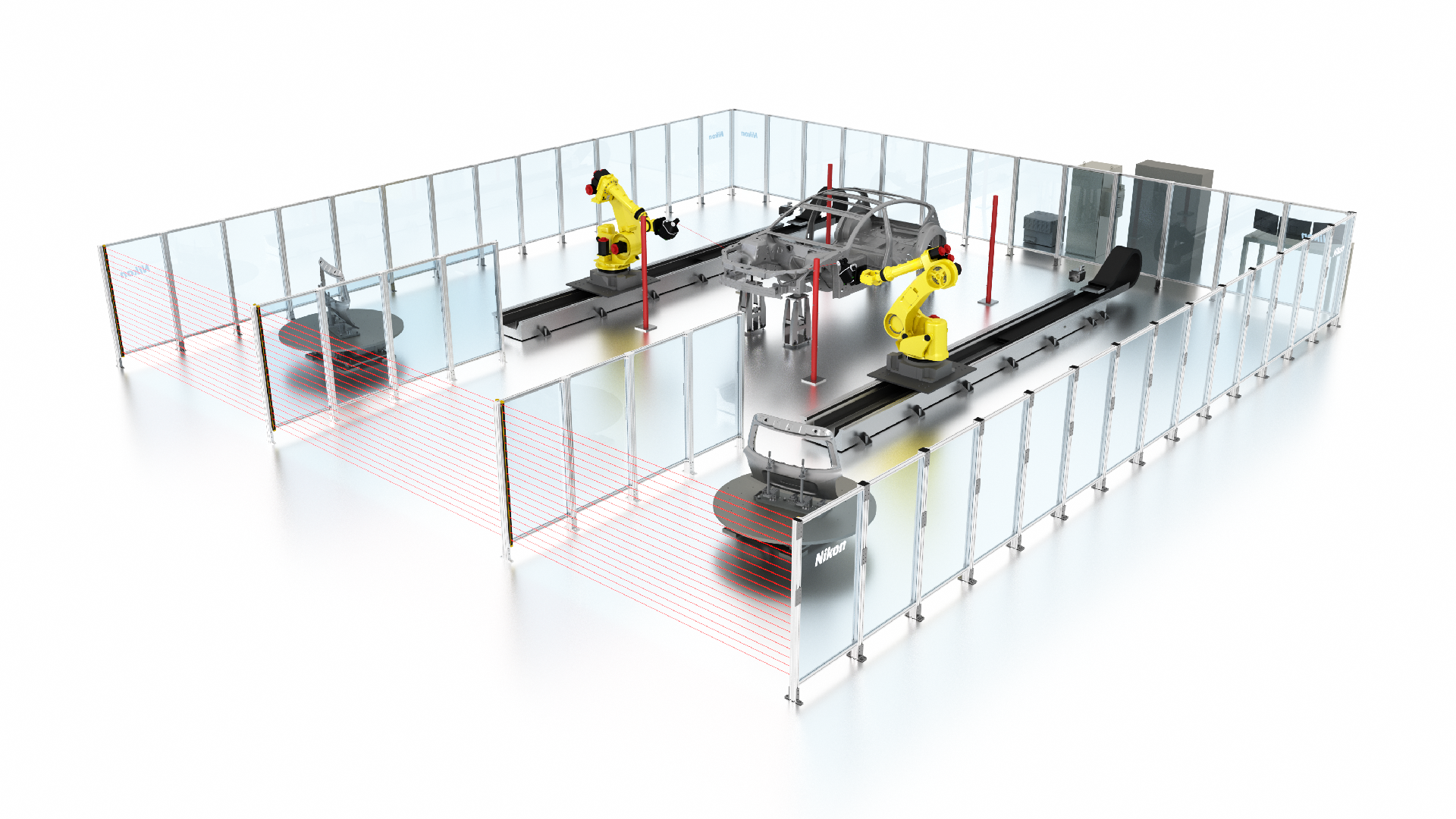

| DR600T | Dual robot on rails 2 x MV5X |
| Name | Install Size* (mm) | Measurement volume** (mm) | TT Diameter (mm) | Rail Travel***(mm) | |||||
| L | W | H | X | Y | Z | ||||
| R-Series | R180S | 8000 | 5000 | 4000 | 1800 | 1800 | 2200 | 1800 | N/A |
| R180D | 9000 | 11000 | 4000 | 2 x 1800 | 2 x 1800 | 2 x 2200 | 1800 | N/A | |
| DR-Series | DR600 | 11000 | 8000 | 4000 | 9000 | 4000 | 3000 | N/A | 6000 |
| DR600T | 13000 | 13000 | 4000 | 9000 + 2 x 1800 | 4000 + 2 x 1800 | 3000 + 2 x 1800 | 1800 | 6000 | |
* Fenceline and minimum clearance height
** Approximate internal measurement volume
*** Rail travel can vary depending on rail used
If you would like further details on this product or a more in-depth description, our expert team will provide you with additional information and, if required, arrange an on-site visit.
