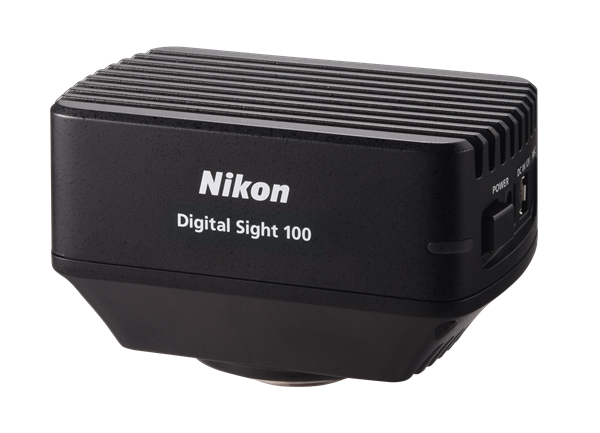

Nikon’s Digital Sight 100 is a color camera that offers high-definition, high-level color reproducibility, and an efficient workflow for viewing, recording and information sharing.

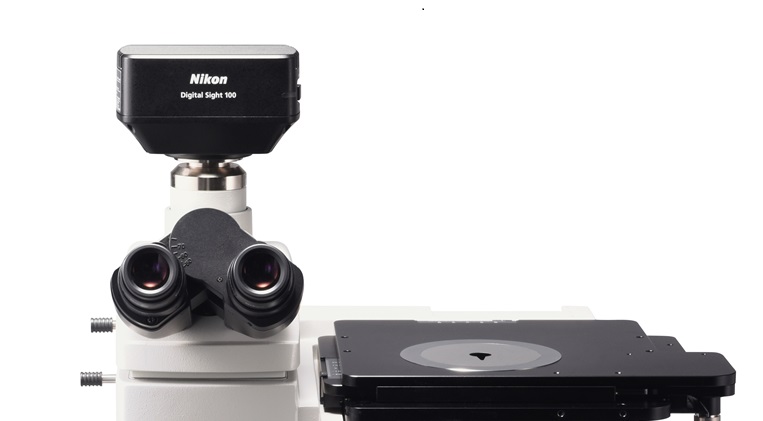

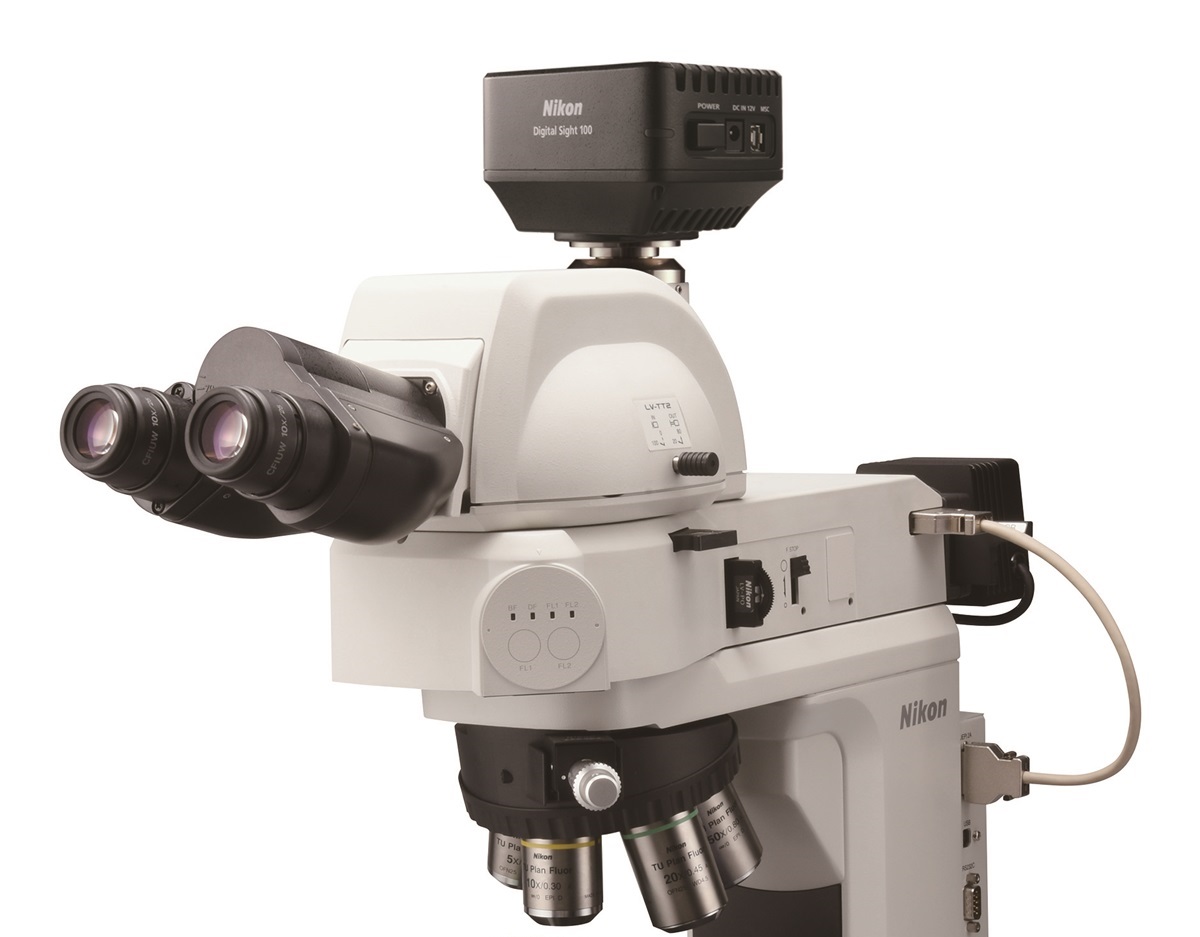

Used with industrial microscopes (FN 16), the Digital Sight 100 delivers 6.5-megapixel resolution (2944 x 2208 pixels), ensuring clear capture of fine structural details and rich color information.
Operators can utilize USB 3.2, HDMI, Wi-Fi, and/or Ethernet to share information taken with the Digital Sight 100.
Easy operation is possible by using the Digital Sight 100 with Nikon’s NIS-Elements LE software, as well as the latest versions of NIS-Elements AR/BR/D.
*Digital Sight 100 (standalone) delivers 17.7-megapixel resolution and supports wide-field imaging up to 4864 x 3648 pixels (FN25).
| Image Sensor | 1 inch Color CMOS image sensor |
| Recordable Pixels @ FN16 | 2944 x 2208 (6.5MP) |
| Maximum Frame Rate @FN16 | 60 fps (1600 x 900) |
| Lens Mount | C-mount |
| Interface | USBPort1 (Device): USB3.2 Gen2x1 (USB2.0 not supported) USBPort2 (Host): USB3.2 Gen1x1 HDMI1.4b MSC communication |
| Power Supply | AC 100 to 240 V 50 Hz/60 Hz |
| Power Consumption | 7 W (Camera Only) |

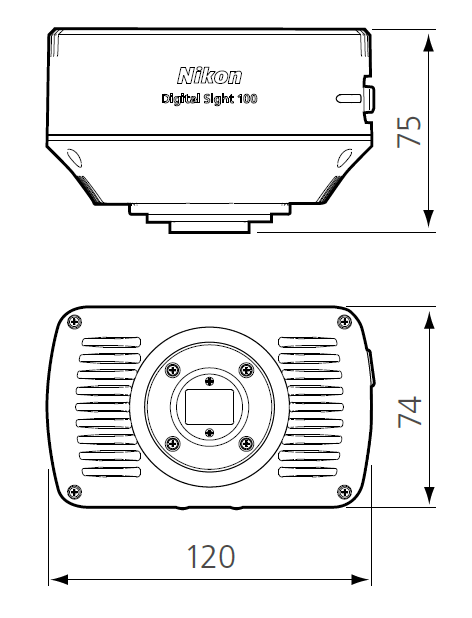

| Dimensions | 120 (W) x 74 (D) x 75 (H) mm |
| Weight | Approx. 600 g |
*Digital Sight 100 (standalone) delivers 17.7-megapixel resolution and supports wide-field imaging up to 4864 x 3648 pixels (FN25).
