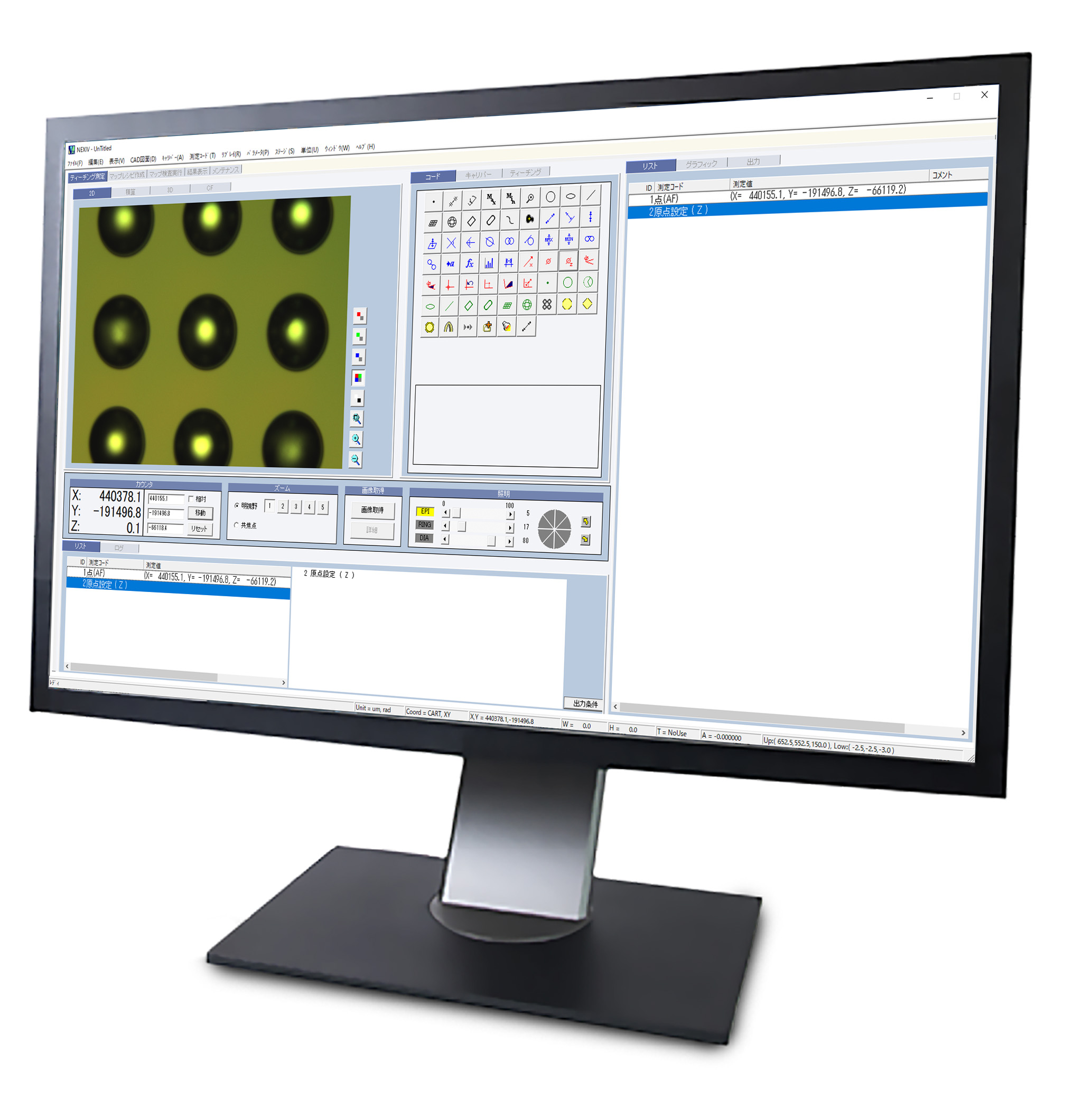

NEXIV Advanced Measure is software specifically designed for the NEXIV VMF-K video measuring system. The sophisticated GUI utilizes the know-how of the NEXIV series, enabling efficient measurement and evaluation of 3D shapes.
Simplify measurement conditions and speed up the measurement process with NEXIV Advanced Measure.

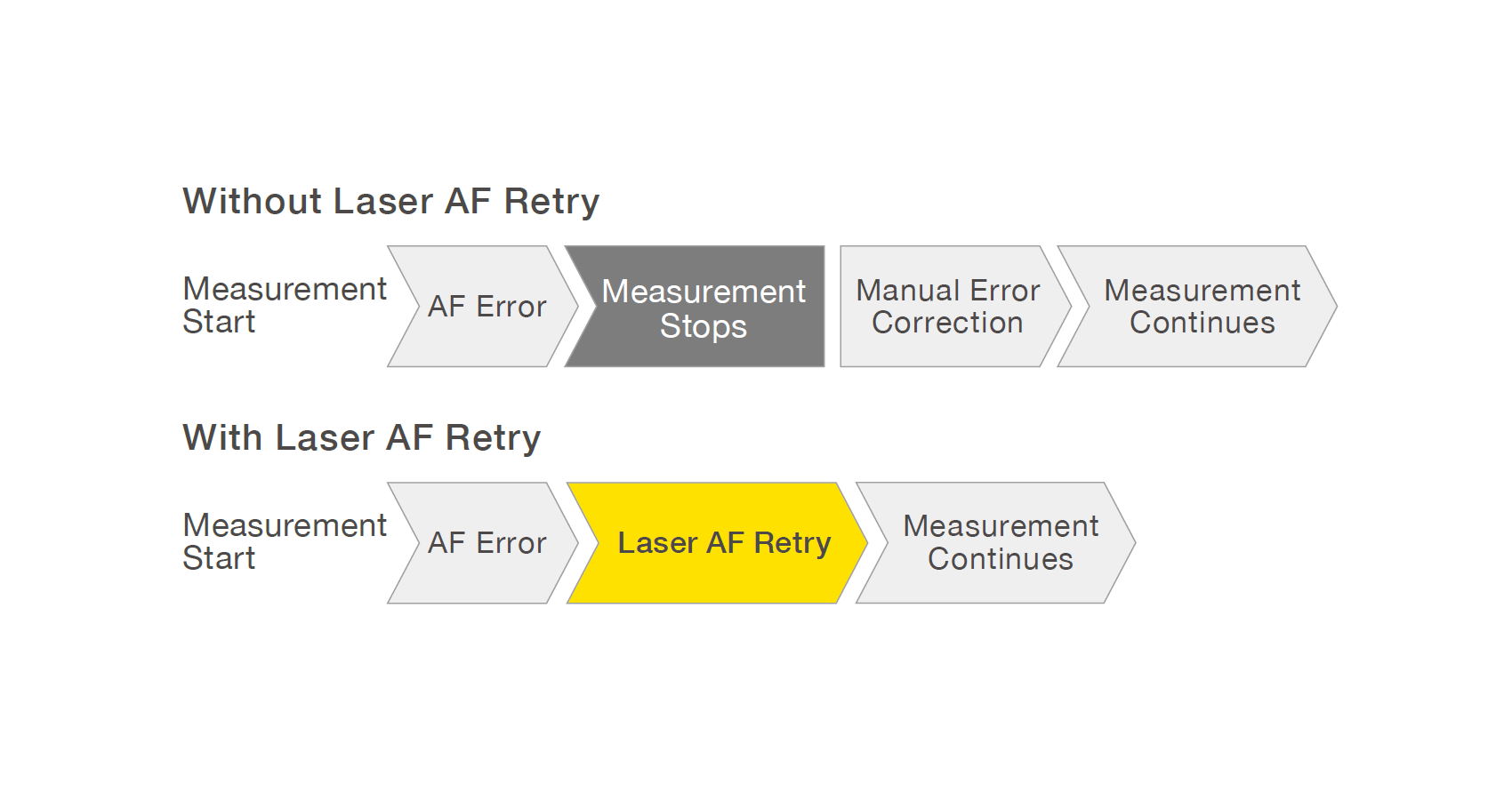

Prevents measurement interruption by automatically retrying AF until it is successful. Operators are needed only at the start of measurement, greatly reducing on-site workload.

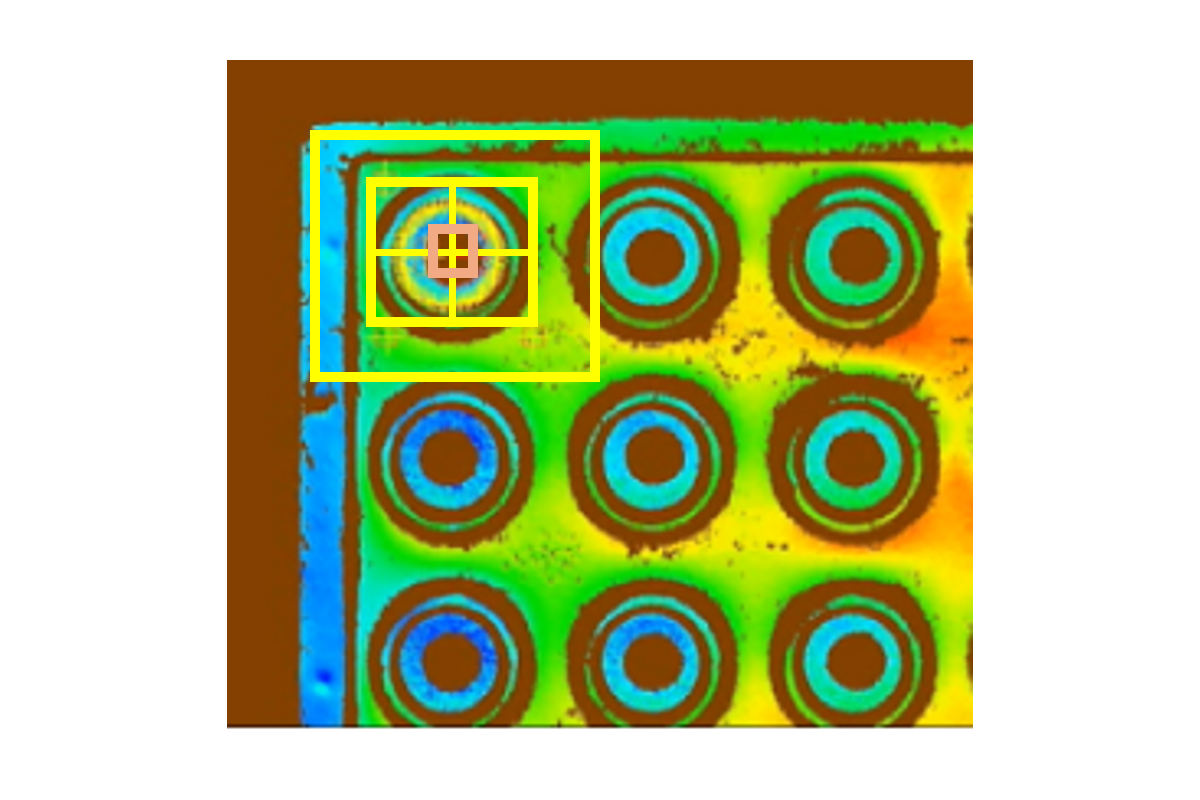

Search and height measurement are performed at once with a single probe. Measurement execution time is reduced, greatly improving work efficiency and productivity. It is possible to acquire height measurement data by adjusting numbers of pixels which assist to enhance measurement reproducibility.

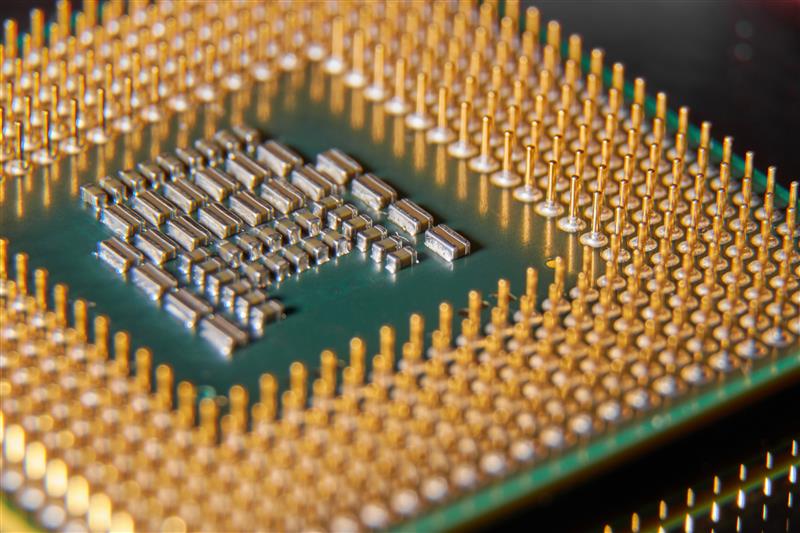

The maximum number of codes that can be handled in a measurement program has been increased. A single program can now accommodate large-scale measurements such as probe cards with many measurement points. This significantly improves work efficiency especially for customers measuring hundreds of thousands to millions of points on probe cards.
NEXIV Advanced Measure is compatible with Windows 11.
NEXIV Advanced Measure is compatible with the NEXIV VMF-K series.
Yes, previously created measurement programs can also be used with the latest version of Advanced Measure
“Advanced AutoMeasure for Confocal” is software exclusively for NEXIV VMZ-K, and “Advanced Measure” is software exclusively for NEXIV VMF-K.

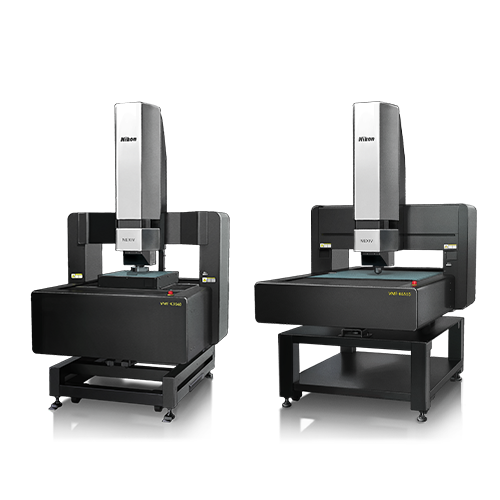

Nikon's NEXIV VMZ-S series of video measuring systems delivers high accuracy, speed and usability for inspection applications down to the micro level.
