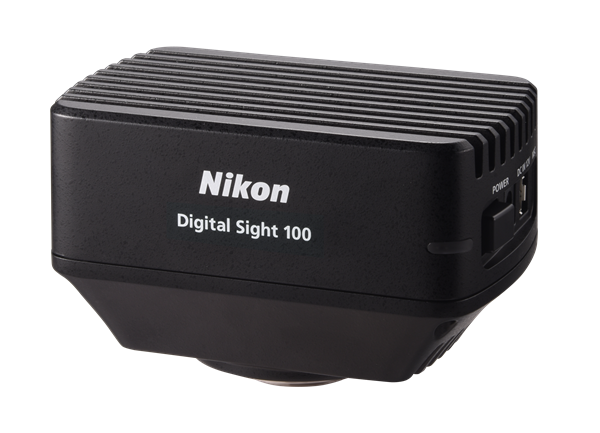

Nikon’s Digital Sight 100 is a colour camera that offers high-definition, high-level colour reproducibility, and an efficient workflow for viewing, recording and information sharing.

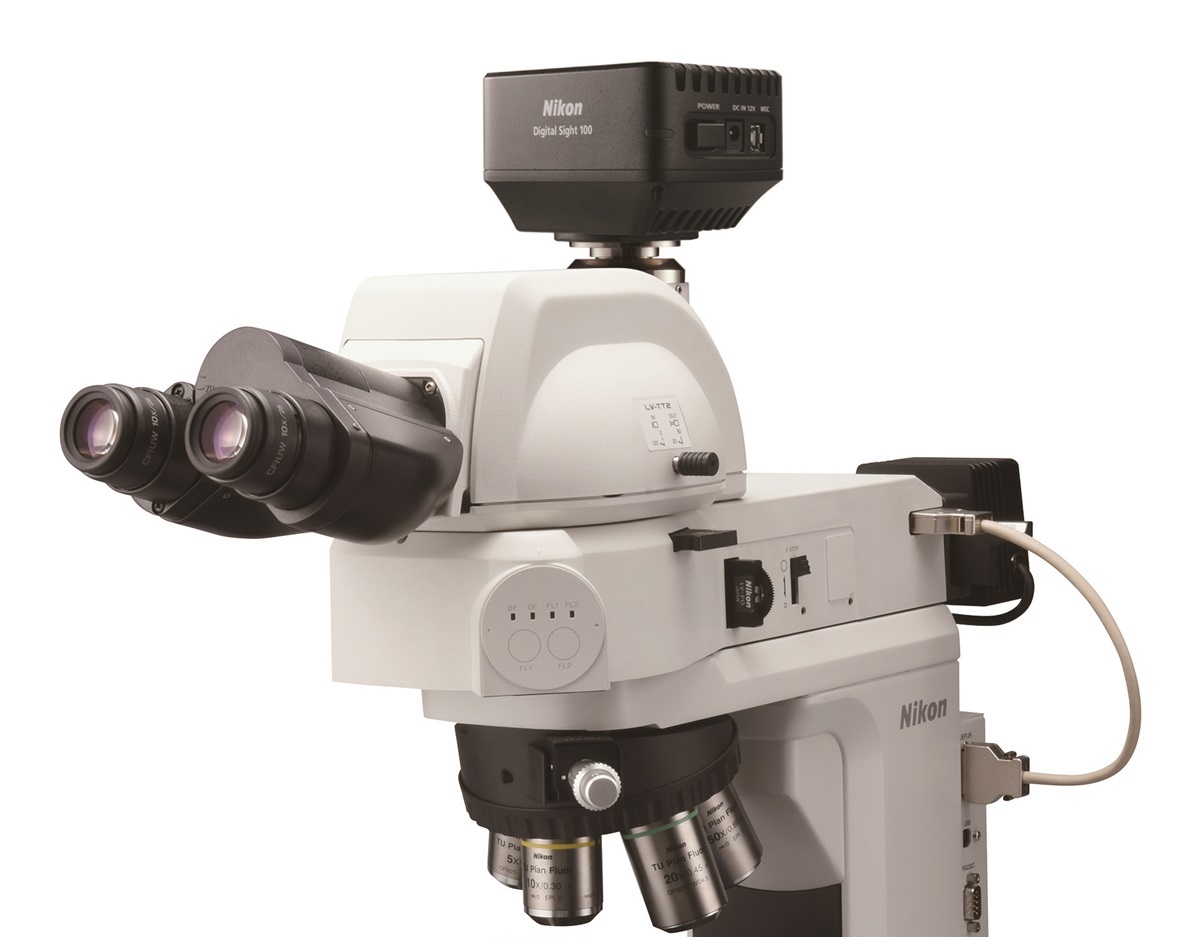

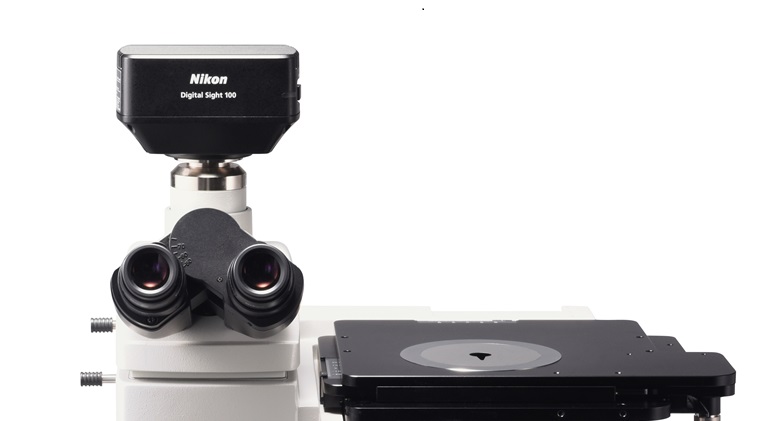

Used with industrial microscopes (FN 16), the Digital Sight 100 delivers 6.5-megapixel resolution (2944 x 2208 pixels), ensuring clear capture of fine structural details and rich colour information.
Operators can utilise USB 3.2, HDMI, Wi-Fi, and/or Ethernet to share information taken with the Digital Sight 100.
Easy operation is possible by using the Digital Sight 100 with Nikon’s NIS-Elements LE software, as well as the latest versions of NIS-Elements AR/BR/D.
*Digital Sight 100 (standalone) delivers 17.7-megapixel resolution and supports wide-field imaging up to 4864 x 3648 pixels (FN25).
A PC with free NIS-LE software installed can be connected via Wi-Fi to capture microscope images.
*The Wi-Fi functionality of this product is provided by external Wi-Fi dongles (sold separately) available in each country and region.
In principle, Wi-Fi dongles should be purchased from local distributors or in-country representative, ensuring compliance with local laws and regulations in your region. We do not bundle them with the product nor export/import them across borders. Using dongles certified for other countries may violate local laws and regulations. Always use products that are legally sold in your local market.
Warranty and support for Wi-Fi dongles are subject to the terms and conditions of your local distributors or in-country representative.
| Image Sensor | 1 inch Color CMOS image sensor |
| Recordable Pixels @ FN16 | 2944 x 2208 (6.5MP) |
| Maximum Frame Rate @FN16 | 60 fps (1600 x 900) |
| Lens Mount | C-mount |
| Interface | USBPort1 (Device): USB3.2 Gen2x1 (USB2.0 not supported) USBPort2 (Host): USB3.2 Gen1x1 HDMI1.4b MSC communication |
| Power Supply | AC 100 to 240 V 50 Hz/60 Hz |
| Power Consumption | 7 W (Camera Only) |

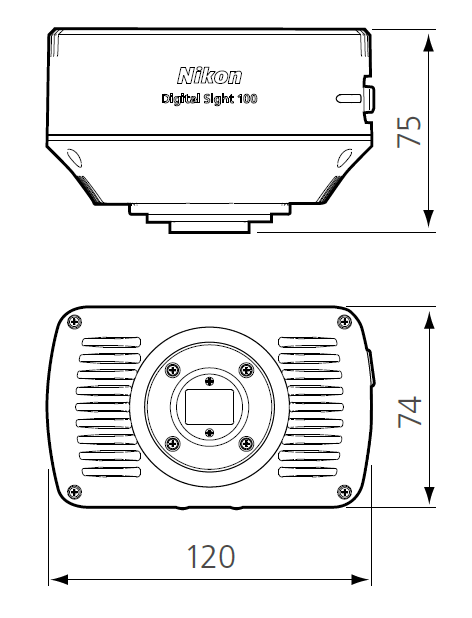

| Dimensions | 120 (W) x 74 (D) x 75 (H) mm |
| Weight | Approx. 600 g |
*Digital Sight 100 (standalone) delivers 17.7-megapixel resolution and supports wide-field imaging up to 4864 x 3648 pixels (FN25).
