Digital Length Measuring System, DIGIMICRO Series
Extreme Precision, Guaranteed Accuracy.
Display values from 1µm to 0.01µm.
Three digital heads – MF-1001:100mm travel, MK-501:50mm travel and MH-12M:15mm travel, with two counters – MFC-200: 0.1µm minimum readable value and accuracy of 3µm and TC-200: 0.01µm minimum readable value and accuracy of 1µm (0.7µm for the MH-15M). Accuracy figures are at 20°C.
Nikon DIGIMICRO Series
Three plunger models and readout units offer various accuracies over the three lengths. The modular accessory range supports special applications.
The MH-15M Digital Head Unit
At 20°C, the MH-15M and TC-200 counter have a 0-15mm measuring range and a 0.01µm minimum readable value at an accuracy of 0.7µm.
The MF-1001 Digital Head Unit
At 20°C, the MF-1001 and MFC-200 (TC-200) counters have a 0-100mm measuring range and a 0.1µm (0.01µm) minimum readable value at an accuracy of 3µm.
The MF-501 Digital Head Unit
At 20°C, the MF-501 and MFC-200 (TC-200) counters have a 0-50mm measuring range and a 0.1µm (0.01µm) minimum readable value at an accuracy of 1µm.
Three Main Bodies, Two Counters
The three plunger head models are the 0-100mm MF-1001, 0-50mm MF-501 and 0-15mm MHF-15M, with two DRO counters, MFC-200 and TC-200.
Accessory Probe Tip Range
Six accessory probe tips are available to match customers’ special requirements. The probe shaft tip variants are: standard, pin, plastic, off-centre, flat and roller.
Accessory Bench Stand Range
Five accessory stands are available: MS-12C, MS-22S, MS32G, MS-51C, and MS-41G.
The correct stand to suit a user’s requirements can be specified for every component.

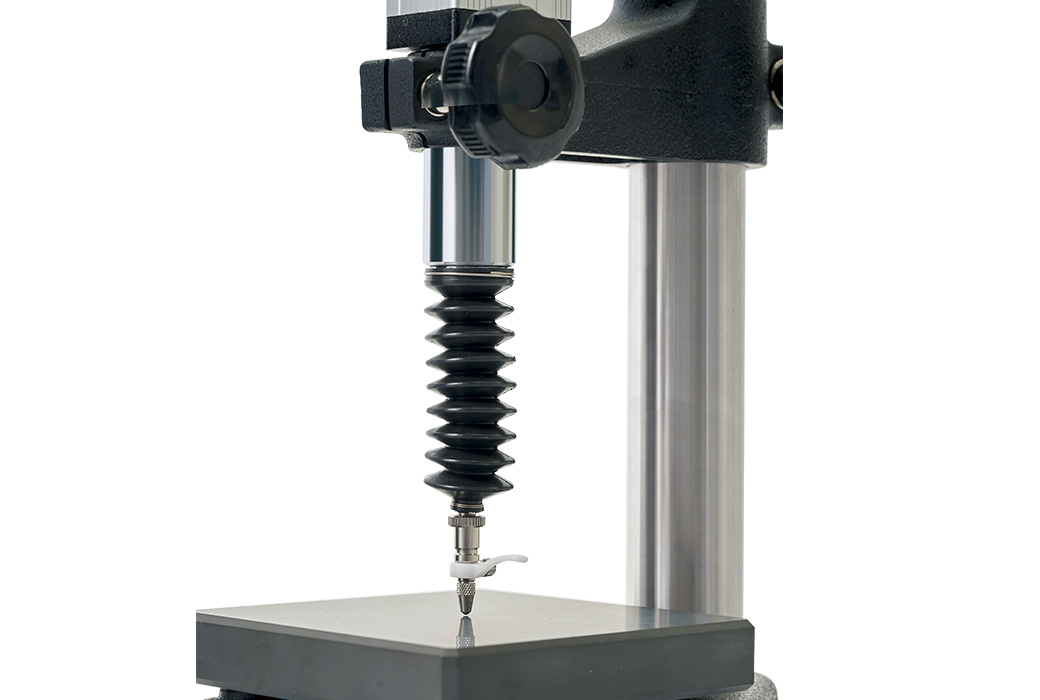

Plunger Protective Anti-Dust Bellows
The measurement head’s probe shaft is very well protected from dust or other contamination, as it is housed within a flexible protective bellows.
|Main Unit + Counter||MF-1001 + MFC-200||MF-1001 + TC-200||MF-501 + MFC-200||MF-501 + TC-200||MH-15M + TC-200|
|Measurement Range||0-100 mm||0-50 mm||0-15 mm|
|Minimum Readable Value||0.1 µm; can be switched to 0.5 µm or 1 µm||0.01 µm; can be switched to|
0.05 µm, 0.1 µm,
1 µm, or 5 µm
|0.1 µm; can be switched|
to 0.5 µm or 1 µm
|switched to 0.5 µm or 1 µm 0.0 1 µm; can be switched to 0.05 µm, 0.1 µm, 1 µm, or 5 µm/th>|
|Accuracy (20 °C)||3 µm||1 µm||0.7 µm|
|Response Speed||500 mm/sec. or less||100 mm/sec. or less|
|Measuring Force||Downward 1.225 to 1.813 N (variable to about 0.441 N), lateral 0.637 to 1.225 N||Downward 1.127 to 1.617 N (variable to about 0.294 N), lateral 0.637 to 1.225 N||Upward 0.245 N, downward 0.637 N, lateral 0.441 N 'With lifting release|
|Operating Temperature||0 to +40 °C|
|Weight (Main Unit)||Approx. 480 g||Approx. 310 g||Approx. 220 g|
