XT H Series – Helical CT Scanner

Nikon's versatile microfocus CT systems for high-resolution inspection of components, ranging from tiny plastic connectors up to aluminum castings for R&D, failure analysis and production quality control.

Adaptable Solutions for the Most Demanding Inspection Applications

These systems combine the adaptability needed in the lab with unique features like 225 kV Rotating.Target 2.0, Half.Turn CT acquisition mode and Auto.Filament Control to shorten cycle time and improve uptime when used for shop floor series inspection.

Product Highlights

Flexibility When You Need It

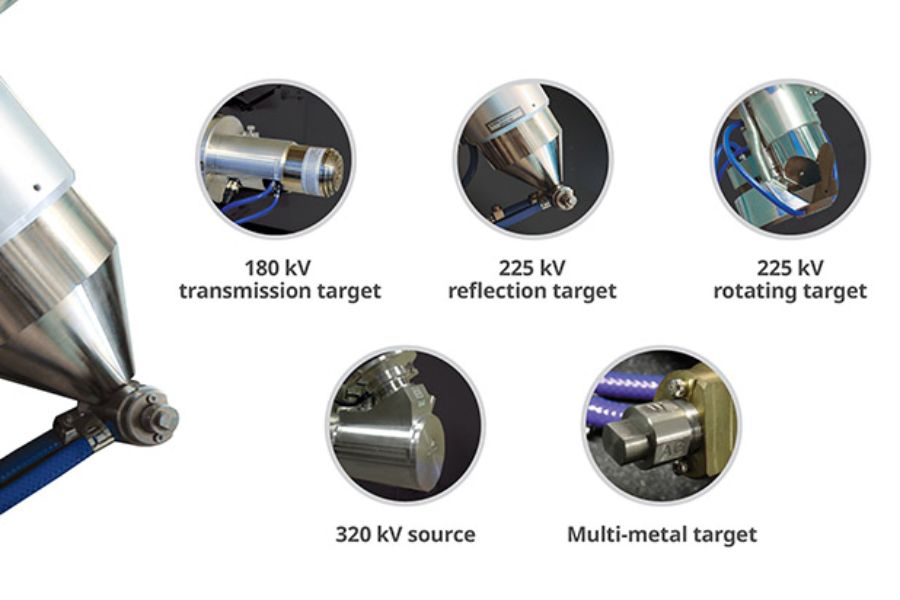

With the choice of source, targets, CT scanning strategies and options such as motorized source-to-detector distance adjustment, the XT H systems are versatile and accommodate a wide range of inspection tasks.

X.Tend Helical CT

Tall objects can be scanned in a single acquisition process, eliminating artifacts introduced by the cone beam and multi-scan stitching. This also provides the added benefit of scanning objects at higher magnification resulting in significantly higher resolution.

Unique 225 kV Rotating.Target 2.0

Allows continuous operation up to 450W with up to three times higher resolution for the same power, or three times faster data collection for a given resolution.

Core Features

Industries

XT H Series

xth-225-xt-2x-cover

XT H 225 ST 2x

automated-ct-cover

Automated CT

MCT225

X-ray CT Inspection Services

nikon-metrology-x-ray-xth225-xt-h-225nikon-metrology-x-ray-xth225-mct-225
XT H 225
For inspection of small to medium parts
XT H 225 ST 2x
Flexible system for a variety of applications
MCT225
High accuracy X-ray CT metrology
Part size Part size Part size
Part density Part density Part density
Accuracy Accuracy Accuracy
Power Power Power
Versatility Versatility Versatility
Footprint Footprint Footprint

Related Products

AI Reconstruction

Nikon's AI Reconstruction revolutionizes computed tomography (CT) scanning through automated image enhancement powered by artificial intelligence (AI). Tailored to each customer's needs, it provides a new level of speed and quality to unlock superior defect detection while accelerating productivity.
Discover the Product

Inspect-X for 3D CT

Designed around the user experience, Inspect-X software provides intuitive displays, advanced scanning modes and user-friendly workflows for all X-ray and CT systems.
Discover the Product

Scatter Correction CT

Nikon’s Scatter Correction CT brings new capabilities to industrial CT scanning by correcting X-ray scatter artifacts using physics-based modelling. It enhances image quality, and measurement accuracy, and boosts productivity for manufacturers working with dense materials in industries including automotive, aerospace, and additive manufacturing (AM).
Discover the Product

Speak To Us About This Product

If you would like further details on this product or a more in-depth description, our expert team will provide you with additional information and, if required, arrange an on-site visit. Talk to us in detail about your project and our experts will advise you on the best inspection system to meet your requirements. Please fill out the form opposite and we will get in touch with you shortly.
