LC15Dx

The LC15Dx captures the smallest of details with highest accuracy providing valuable insights for components ranging from small airfoil blades to intricate sheet metal parts.

Measurements at the Highest Accuracy Level

Thanks to custom-designed, top quality Nikon optics, the LC15Dx captures the smallest details with precision while maintaining speed and data quality. It does this by optimizing the laser settings in real time to match the type and reflectivity of the material being inspected.

Product Highlights

Precision and Detail

With its class-leading optics, the LC15Dx accurately captures the smallest details on a wide variety of high precision parts.

Measure Any Surface

An intelligent reflection filter and automatic point-per-point laser power adjustment make measuring any surface effortless.

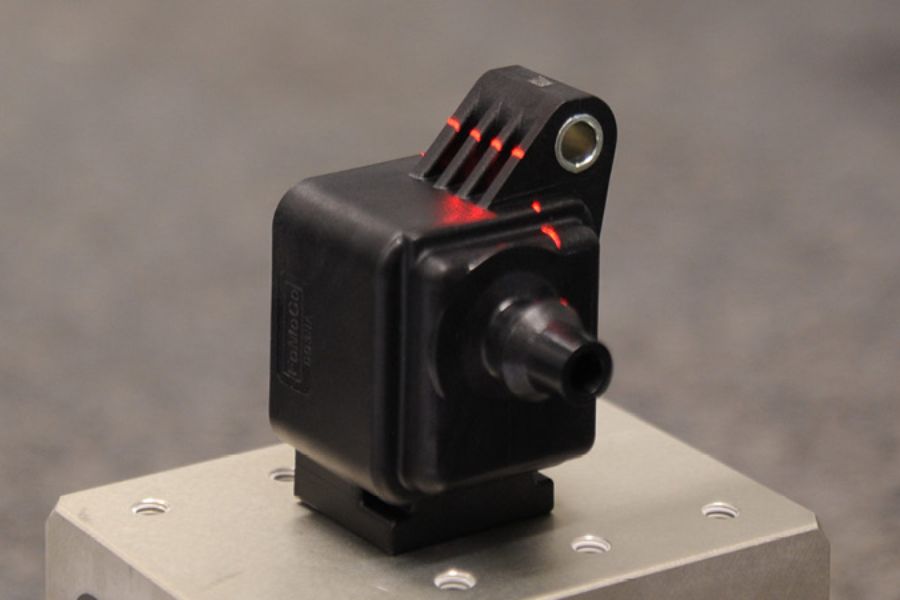

Digitise parts easily with Nikon's Laser Scanner LC15Dx

Productivity

Digitize parts quickly to get immediate insight into dimensional quality.

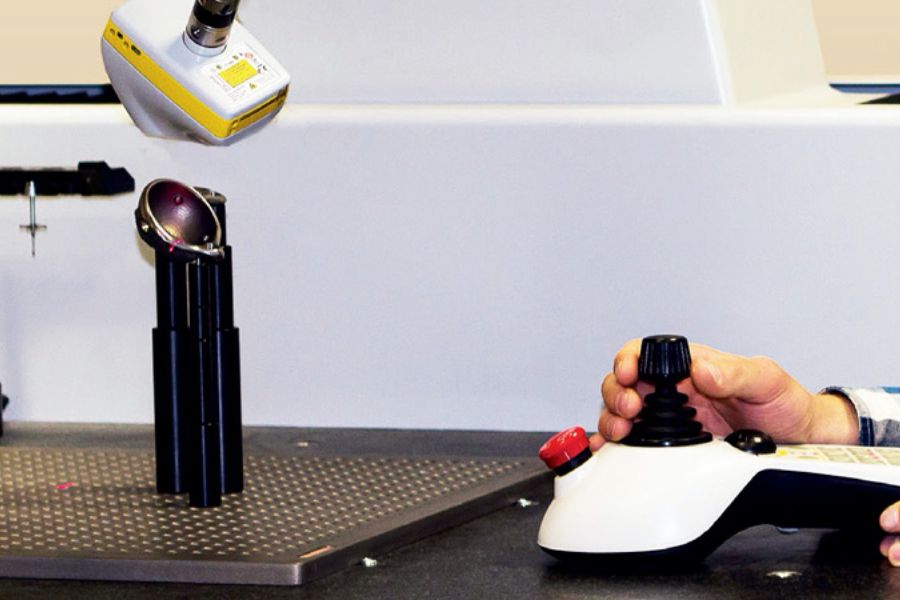

Nikon's Laser Scanner LC15Dx remote control panel

Automation

Automate complex inspection routines for efficient analysis of any series of parts.

Nikon's Laser Scanner LC15Dx comes in a wide range of CMMs

Compatibility

The LC15Dx connects to a wide variety of CMMs and integrates seamlessly into many metrology software packages.

Measure fragile or flexible parts with Nikon's contact-free Laser Scanner LC15Dx

Measure Fragile Parts

As a non-contact device, the LC15Dx is ideal for the measurement of fragile or flexible parts.

Core Features

ESP3 Laser Adjustment

Nikon’s patented ESP3 technology intelligently adapts laser settings for each measured point in real time. This guarantees optimal laser power for every point on the measured surface, enabling inspection of a wide variety of surface materials, finishes, colours and transitions, without the need for user interaction, manual tuning or part spraying.

Daylight Filter

A daylight filter integrated into the lens of the scanner ensures measurements are unaffected by bright ambient lighting conditions.

Custom Designed Nikon Lens

The optical lens inside the LC15Dx is purpose-built for this laser scanner by Nikon’s renowned lens design team. This results in measurement data with class-leading precision and detail.

Custom Designed Lens on Nikon's Laser Scanner LC15Dx

Temperature Compensation

The LC15Dx is fully temperature compensated, allowing users to confidently start measuring immediately, without the need to wait for the scanner to reach working temperature.

Range Finder

A visual indicator helps the positioning of the part to be inspected within the measurement volume of the LC15Dx, simplifying programming of an inspection routine.

Autojoint Connector

With its Renishaw Autojoint connector, the LC15Dx can be connected to an Autojoint-compatible probe head. This guarantees a repeatable connection to the CMM and allows the scanner to be mounted and unmounted automatically using an exchange rack.

Reflection Filter

A built-in reflection filter automatically filters out any unwanted reflections of the measurement laser when inspecting shiny surfaces.

Focus

Download

LC15Dx

Download

Field of View width	18 mm
Field of View height	15 mm
Stand-off Distance	60 mm
Scanning Speed (approx)	70,000 points/sec
Resolution (point spacing)	22 u00b5m
ISO Probing Form Error¹	7 u00b5m
ISO Probing Size Error all²	10 u00b5m
ISO Probing Dispersion Value³	7.6 u00b5m
Weight	370 g
Laser Safety	Class 2

Accuracy specifications according to ISO 10360-8:2013:
¹ P_{Form.Sph.1×25:Tr:ODS,MPE} : “Maximum probing form error” using 25 representative points in translatory scanning mode
² P_{Size.Sph.All:Tr:ODS,MPE} : “Maximum probing size error All” using all measured points in translatory scanning mode
³ P_{Form.Sph.D95%:Tr:ODS,MPL} : “Maximum probing dispersion value” using 95% of the measured points in translatory scanning mode
